HACH

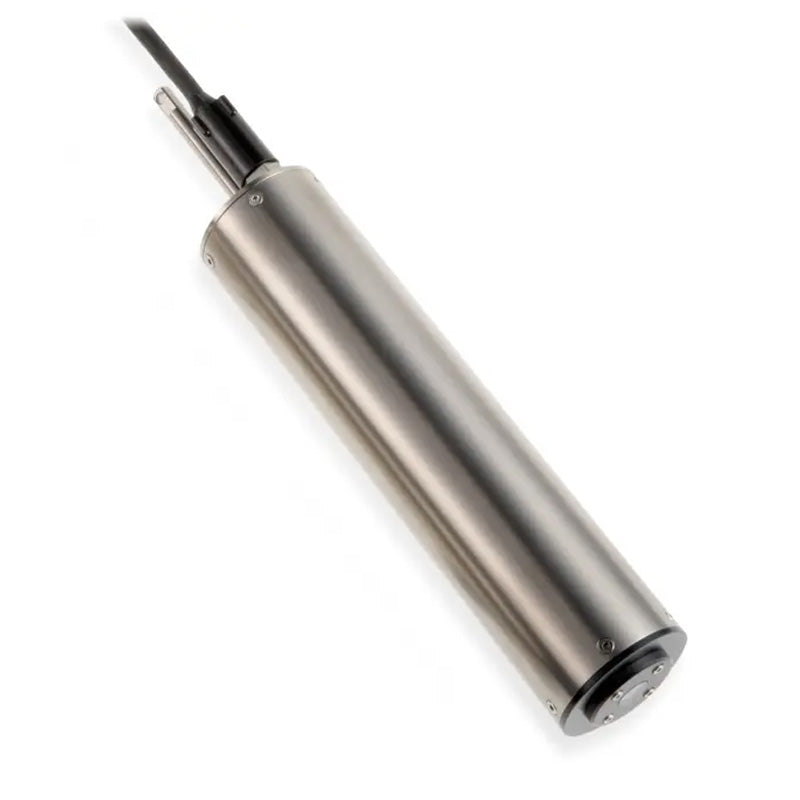

HACH FP360sc Oil-in-Water Sensor, 500 ppb, Titanium Body, 10 m (32.8 ft) Cable, without Cleaning Unit PN. LXV441.99.12102

HACH FP360sc Oil-in-Water Sensor, 500 ppb, Titanium Body, 10 m (32.8 ft) Cable, without Cleaning Unit PN. LXV441.99.12102

$35,936.77 USD
$35,936.77 USD
促销 售罄

* Please consult before ordering

Even the smallest oil traces impair water quality. The probe monitors surface waters, process water and industrial water continuously for even traces of mineral oil contamination. The highly sensitive UV fluorometer is immersed directly in the medium. For reliable, long term stable hydrocarbon monitoring, intensity fluctuations of the flash lamp are compensated. Influences associated with daylight are automatically eliminated. The probe can be combined with additional sensors on the SC controllers.

Benefits

Lowest Cost of Ownership

The FP 360 sc is specifically designed to detect traces of mineral oils in water while providing the necessary value and benefits for a positive return on investment.

The Right Technology for the Right Price

Due to its unique combination of submersible probe design and UV fluorescence sensing technology, the FP 360 sc delivers the best technology to detect oil in water and is priced below competitive UV fluorescent instruments.

Minimal Maintenance

The FP 360 sc has no tubes, pumps, or valves that can foul or require constant maintenance interventions. Maintenance is limited to occasional wiping of the sensor's measurement window, calibration once every two years, and Xenon lamp replacement every four years.

Reduced Laboratory Testing

While laboratory testing is the ultimate method of measuring oil in water, it is a long and complex process that requires special equipment and trained lab personnel. The FP 360 sc provides a cost-effective, continuous online monitoring solution to maintain process control and avoid oil contamination with minimal laboratory testing.

High Sensitivity and Selectivity

The FP 360 sc can detect and measure polycyclic aromatic hydrocarbons (PAHs) from 1.2 ppb to up to 5000 ppb (µg/L). This is approximately equivalent to a concentration of mineral oil between 0.1 to 150 ppm (mg/L). Furthermore, the FP 360 sc method of detection makes it impervious to interferences by turbid water or natural organic and biological matter that impact online light scattering, UV absorbance, and VIS fluorescence instruments.

Designed for Harsh Conditions

The FP 360 sc is available in stainless steel or titanium housing to provide oil-in-water measurement in the harshest of conditions.
Full Featured “Plug and Play” with Hach Digital Controllers
There’s no complicated wiring or set up procedures with the Hach family of controllers. Just plug the sensor to any Hach digital controller and it’s ready to use because it’s “plug and play.”

Specifications



Technical Attributes

Ambient Temperature -5 - 45 °C (23 - 113 °F)
Body material Titanium
Body Material Titanium
Cable Length 10 m (32.8 ft)
Calibration Factory calibrated with UV fluorescence standard or process calibration with results of a grab sample analysis.
Controller Compatibility SC4500, SC1000, SC200
Detector UV photodiode with interference filter; Compensation of daylight and flashlamp intensity fluctuations
Diameter 68 mm
Excitation Wavelength 254 nm
Length 311 mm
Light Source Miniature xenon flashlamp with interference filter
Material Housing: titanium
Measurement Method UV fluorescence method for polycyclic aromatic hydrocarbons (PAH)
Measuring range 0 - 500 ppb (µg/L) PAK, based on calibration standards
Measuring range 0.1 - 15 ppm (mg/L) Oil, based on calibration standard
pH Value(s) ≥ 4
Pressure Range Max 30 bar or 435 psia (measurement probe)
Range 0 - 500 ppb (µg/L) (PAH) or 0.1 - 15 ppm (mg/L) (Oil)
Reproducibility 2.5 % of measured value at constant temperature
Response Time T90 10 s
Sample Temperature 1 - 40 °C (33.8 - 104 °F)
Sensor cleaning No
Storage Conditions -40 °C - 60 °C
Warranty 12 months
Weight 1.8 kg
What's included? Oil-in-water probe, user manual
