HACH

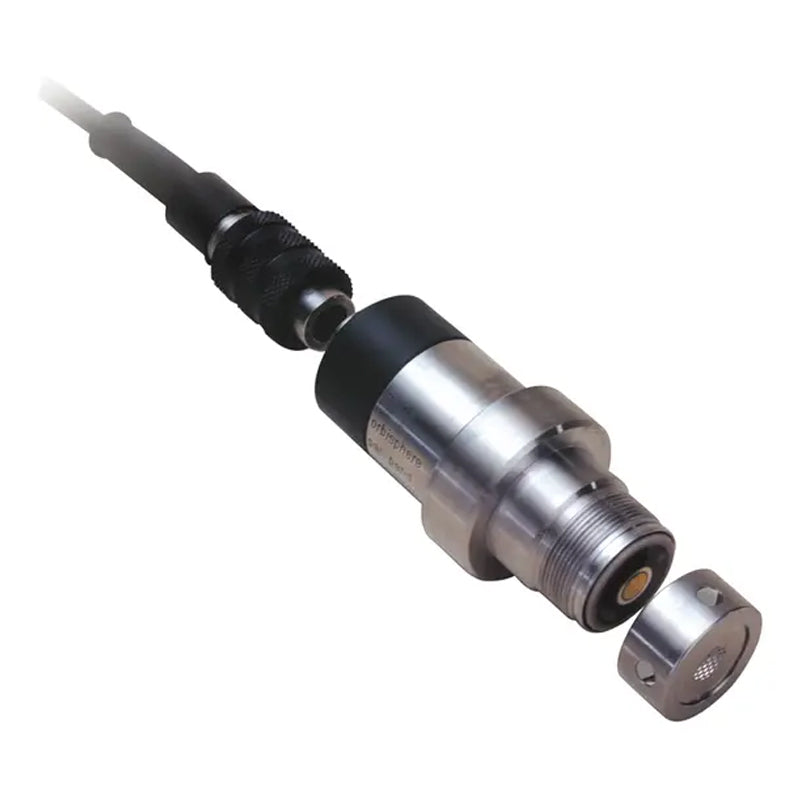

HACH EC Sensor, Hydrogen, PEEK, 50 bar, O-Ring FKM/FPM PN.31210.12
HACH EC Sensor, Hydrogen, PEEK, 50 bar, O-Ring FKM/FPM PN.31210.12
常规价格
$18,340.27 USD
常规价格
促销价
$18,340.27 USD
单价
/
单价
无法加载取货服务可用情况
* Please consult before ordering
Allows you to monitor hydrogen in the power production process.
Hydrogen EC sensor, PEEK, guard ring: platinum, O-ring: FKM/FPM (20 bar)
Specifications
Technical Attributes
| Accuracy | The greater of ±1% of reading, or ±0.03 ppb, or ±1 Pa (Membrane 2956A) |
| Accuracy 2 | The greater of ±1% of reading, or ±0.09 ppb, or ±6 Pa (Membrane 2952A) |
| Accuracy 3 | The greater of ±1% of reading, or ±1 ppb, or ±50 Pa (Membrane 2995A) |
| Accuracy 4 | The greater of ±1% of reading, or ±10 ppb, or ±1 kPa (Membrane 29015A) |
| Ambient Temperature | -5 - 100 °C (23 - 212 °F) |
| Application | Corrosion rate |
| Certifications | IP68 / NEMA4 |
| Flow Rate | Typical Flow Rate Membrane 2956A : 50 to 220 mL/min Membrane 2952A : 40 to 200 mL/min Membrane 2995A : 20 to 70 mL/min Membrane 29015A : 20 to 40 mL/min |
| Material | O-Ring: FKM/FPM |
| Parameter | Hydrogen |
| Protection Class | IP68 / NEMA4 |
| Radiation Resistance Level | Membrane 2956A : 2x10⁴ rad Membrane 2952A : 108 rad Membrane 2995A : 108 rad Membrane 29015A : N/A |
| Range | Range at 25 °C Membrane 2956A : 0 - 75 ppb or 0 Pa - 5 kPa Membrane 2952A : 0 - 300 ppb or 0 Pa - 20 kPa Membrane 2995A : 0 - 3200 ppb or 0 Pa - 200 kPa Membrane 29015A : 0 ppb - 32 ppm or 0 - 2000 kPa |
| Sample Pressure | 0 - 50 bar |
| Special Features | Silver guard ring |
| Temperature Range | Accurate from -5 - 50 °C (23 - 122 °F) Resistant - temperature from -5 - 100 °C (23 - 212 °F) |
| Warranty | 12 months |
| Weight | 140 to 700 grams, depending on the construction materia |
| What's included? | Sensor and manual. Controller, sensor cable, flow-chamber or process connection must be ordered separately. |
