HACH

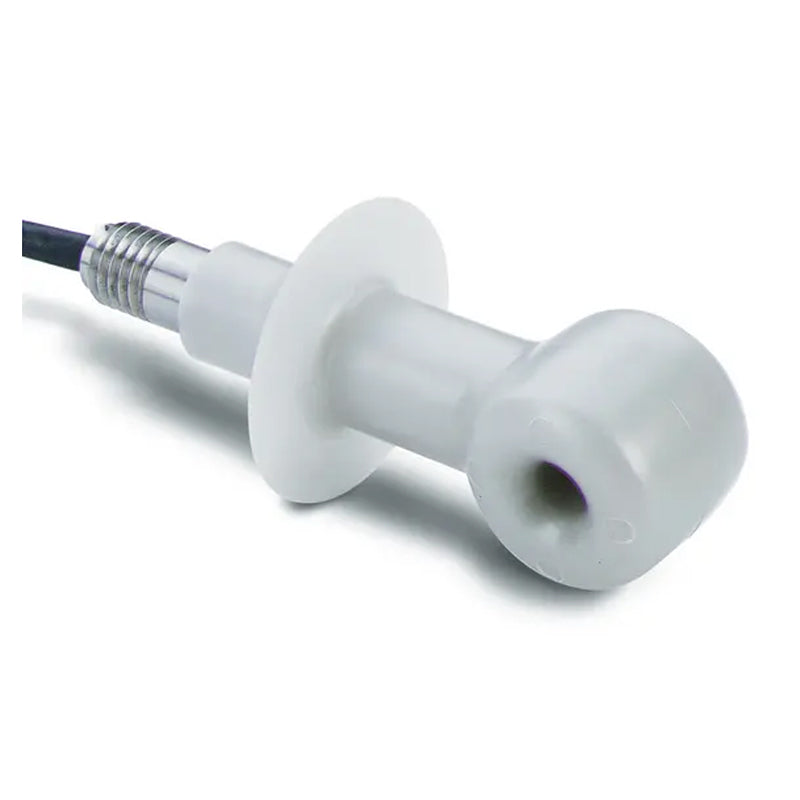

HACH Digital Sanitary Inductive (Electrodeless) Conductivity Sensor with Polypropylene Body Material PN.D3705E2T
HACH Digital Sanitary Inductive (Electrodeless) Conductivity Sensor with Polypropylene Body Material PN.D3705E2T
无法加载取货服务可用情况
* Please consult before ordering
Innovative technology eliminates polarization and electrode coating problems in harsh environments.
Polypropylene, Sanitary (CIP) Flange Mounting Style, 6m (20 ft) Analog Cable, Electrodeless Conductivity Sensor, includes 6120800 Digital Gateway for Connecting to sc Controller and a 6122400 1m (3 ft) Digital Extension Cable
Benefits
Wide Measuring Range
Hach’s Inductive Conductivity Sensors measure 200 up to 2,000,000 microSiemens/cm. A built-in Pt 1000 RTD compensates the measured conductivity for changes in process temperature.
Low Maintenance Design
The inductive sensor design eliminates polarization and electrode coating problems that commonly affect conventional contacting electrode-type conductivity sensors.
Versatile Mounting Styles
Sensors can be installed using a choice of four mounting styles—immersion, insertion, union, and sanitary.
Withstands Harsh Environments
The inductive sensor is available in sanitary (CIP) flange style and convertible styles in PFA, polypropylene, PEEK, and PVDF material. Select sensors can withstand high pressures and temperatures.
Hach sc Digital Controllers and Communications Protocols
The sc controller family allows you to receive data from up to eight Hach digital sensors in any combination using a single controller. Available communications include analog 4-20 mA, digital MODBUS® (RS485 and RS232) or Profibus DP protocols. (Other digital protocols are also available.) A buildt-in dta logger collects
Specifications
Technical Attributes
| Accuracy | ± 0.01 % of reading, all ranges |
| Body Material | Polypropylene |
| Cable Length | 22 ft |
| Flow | Rate 3 m (10 ft.) per second, maximum |
| Material | Polypropylene |
| Mounting | Sanitary |
| Operating Temperature Range | -10 - 200 °C |
| Pressure Range | Up to 200 psig at 150°C (302°F); limited only by sensor body material and mounting hardware |
| Range | 200 µS/cm - 2000 mS/cm |
| Sensor Cable | Polypropylene and PVDF Sensors: 5 conductor (plus two isolated shields) cable with XLPE (cross-linked polyethylene) jacket; rated to 150 °C (302ºF); 6 m (20 ft.) long |
| Sensor Type | Digital |
| Temperature Sensor | Temperature Compensator Pt 1000 RTD |
| Warranty | 12 months |
| Wetted Materials | Polypropylene, PVDF, PEEK® or PFA® |
| What's included? | Includes: sensor with cable, digital gateway, extension cable and manual |
