HACH

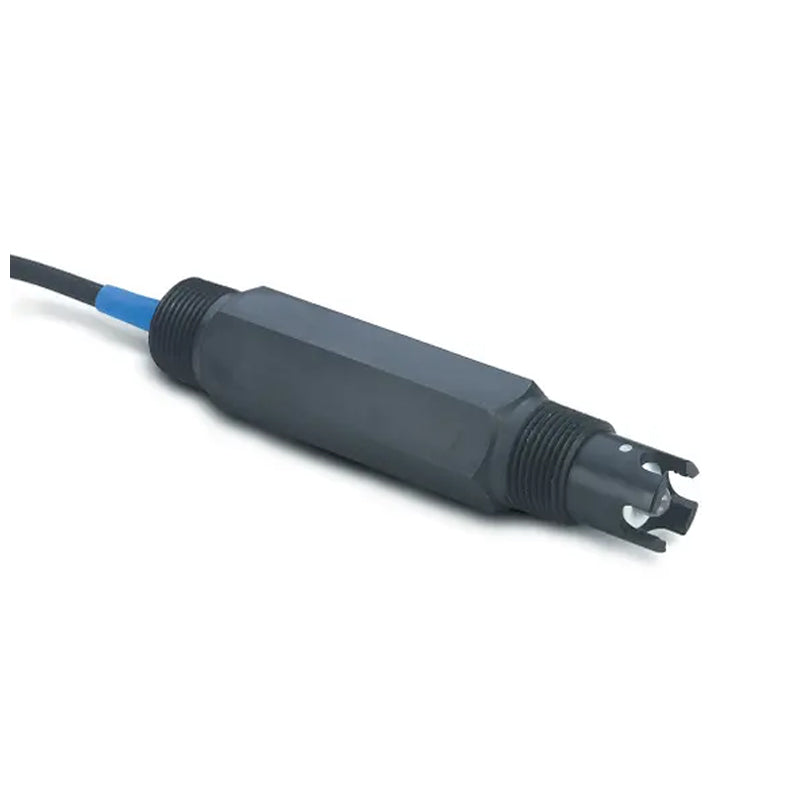

HACH Digital 3/4 Inch ORP Sensor, Convertible Sensor Style, PPS Body, Platinum Electrode, Temperature Compensation-None PN.DRC1R5N
HACH Digital 3/4 Inch ORP Sensor, Convertible Sensor Style, PPS Body, Platinum Electrode, Temperature Compensation-None PN.DRC1R5N
无法加载取货服务可用情况
* Please consult before ordering
Low Price—High Performance
PPS, Convertible Body Style, 4.5m Analog Cable, Platinum Electrode, No Temperature Compensation, includes 6120600 Digital Gateway for Connecting to sc Controller and a 6122400 1m (3ft) Digital Extension Cable
Benefits
Low Price-Great Performance
Digital 3/4 Inch ORP Sensor, Convertible Sensor Style, PPS Body, Platinum Electrode, Temperature Compensation-None
Special Electrode Configurations
Sensors with rugged dome electrodes, “easy-to-clean” flat glass electrodes, and even HF (hydrofluoric acid) resistant glass electrodes are available for a wide variety of process solutions.
Temperature Compensation Element Option
The PC-series combination pH sensors are available with or without a Pt 1000 ohm RTD temperature element. The RC-series combination ORP sensors are supplied without a temperature element.
Versatile Mounting Styles
Sensors are available in three mounting styles—convertible, insertion, and sanitary.
Full-Featured “Plug and Play” Hach sc Digital Controllers
There are no complicated wiring or set up procedures with any Hach sc controller. Just plug in any combination of Hach digital sensors and it’s ready to use—it’s “plug and play.”
Specifications
Technical Attributes
| Accuracy | ± 20 mV Limited to calibration solution accuracy |
| Body Material | PPS |
| Cable Length | 5.5 m |
| Electrode Material | Platinum Electrode |
| Flow | 0 - 2 m/s |
| Material | PPS |
| Operating Temperature Range | 0 - 105 °C |
| Pressure Range | 0 - 6.9 bar at 100ºC (0 - 100 psig at 212ºF) |
| Range | -2000 - 2000 mV |
| Sensor Cable | Integral coaxial cable (plus two conductors for temperature compensator option); 4.5 m (15 ft.) long |
| Sensor Thread | 0.75" |
| Special Notes | Delivery includes RC1R5N analog ORP sensor, AD 1200 Digital Gateway and 1 m digital extension cable |
| Specifications | Most pH applications fall in the 2.5-12.5 pH range. General purpose pH glass electrodes perform well in this range. Some industrial applications require accurate measurements and control at pH values below 2 or above 12. Consult Hach Technical Support for details on these applications. |
| Temperature Compensation | None |
| Transmission Distance | Signal Transmission Distance 1000 m (3280 ft.) when used with the Hach Digital Gateway, Termination Box, and sc100 Controller. |
| Warranty | 3 months |
| Wetted Materials | PPS, PTFE double junction, glass with platinum electrode, FKM/FPM O-rings |
| What's included? | Includes: sensor with 15 ft cable, digital gateway, 3 ft digital extension cable and manual |
