HACH

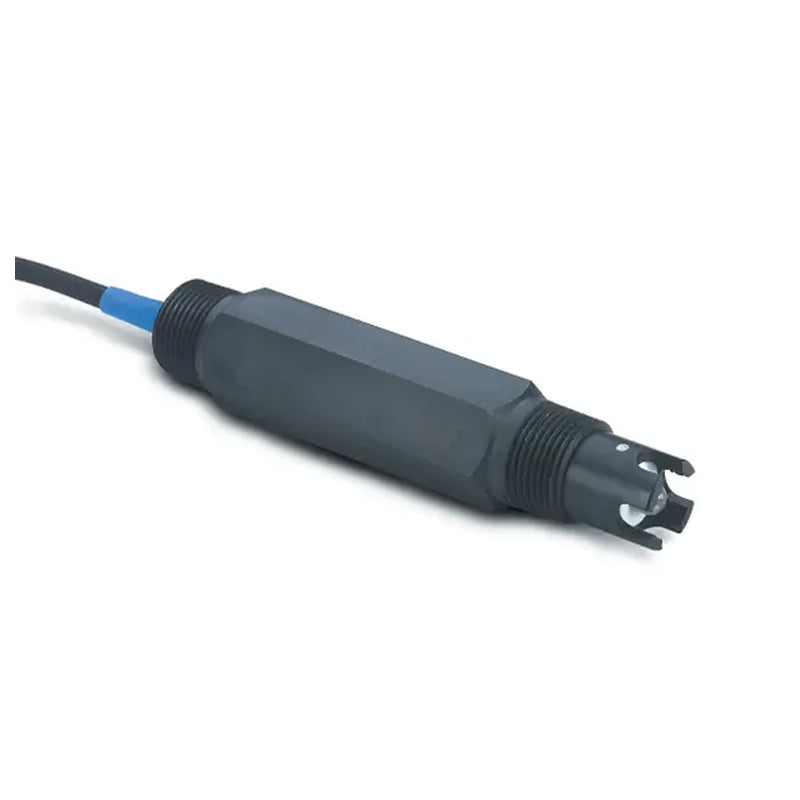

HACH Digital 3/4" Combination pH/ORP Sensor, Insertion Style, PVDF Body Material, General Purpose Glass pH Electrode PN.DPC2K1A

HACH Digital 3/4" Combination pH/ORP Sensor, Insertion Style, PVDF Body Material, General Purpose Glass pH Electrode PN.DPC2K1A

$969.11 USD
$969.11 USD
促销 售罄

* Please consult before ordering

PVDF, Insertion Body Style, 4.5m Analog Cable, General Purpose Glass pH Electrode, Pt 1000 Temperature Compensation, includes 6120600 Digital Gateway for Connecting to sc Controller and a 6122400 1m (3ft) Digital Extension Cable

Benefits

Low Price-Great Performance

Digital 3/4 Inch Combination pH/ORP Sensor, Insertion Style, PVDF Body Material, General Purpose Glass pH Electrode, Temperature Compensation - Pt 1000 ohm RTD

Special Electrode Configurations

Sensors with rugged dome electrodes, “easy-to-clean” flat glass electrodes, and even HF (hydrofluoric acid) resistant glass electrodes are available for a wide variety of process solutions.

Temperature Compensation Element Option

The PC-series combination pH sensors are available with or without a Pt 1000 ohm RTD temperature element. The RC-series combination ORP sensors are supplied without a temperature element.

Versatile Mounting Styles

Sensors are available in three mounting styles—convertible, insertion, and sanitary.

Full-Featured “Plug and Play” Hach sc Digital Controllers

There are no complicated wiring or set up procedures with any Hach sc controller. Just plug in any combination of Hach digital sensors and it’s ready to use—it’s “plug and play.”

Specifications



Technical Attributes

Accuracy 0.1 pH under reference conditions
Body Material PVDF
Electrode Material General Purpose Glass pH Electrode
Material PVDF
Operating Temperature Range 0 - 105 °C
Pressure Range 0 - 6.9 bar at 100ºC (0 - 100 psig at 212ºF)
Range Combination pH Sensors 0 - 14 pH
Sensor Cable Integral coaxial cable (plus two conductors for temperature compensator option); 4.5 m (15 ft.) long
Sensor Thread 0.75"
Specifications Most pH applications fall in the 2.5-12.5 pH range. General purpose pH glass electrodes perform well in this range. Some industrial applications require accurate measurements and control at pH values below 2 or above 12. Consult Hach Technical Support for details on these applications.
Temperature Compensation Pt 1000 ohm RTD
Transmission Distance Signal Transmission Distance 1000 m (3280 ft.) when used with the Hach Digital Gateway, Termination Box, and sc100 Controller.
Warranty 3 months
Wetted Materials PVDF, PTFE double junction, glass electrode, FKM/FPM O-rings
What's included? Includes: sensor with 15 ft cable, digital gateway, 3 ft digital extension cable and manual
