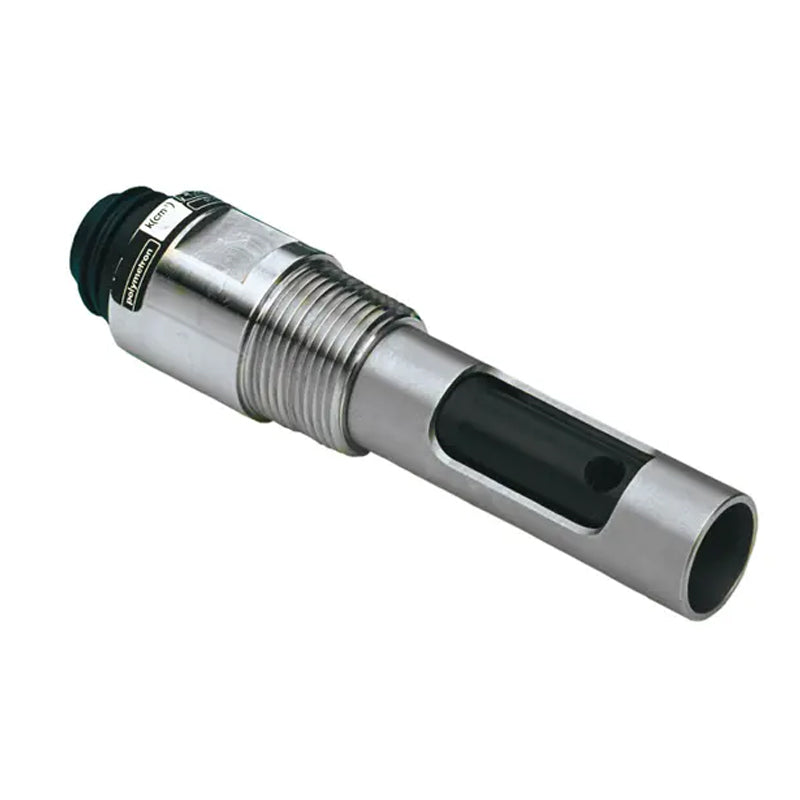

HACH Digital 2-electrode contact conductivity sensor, k=1 PN.08317=A=0000
HACH Digital 2-electrode contact conductivity sensor, k=1 PN.08317=A=0000
常规价格
$1,909.62 USD
常规价格
促销价
$1,909.62 USD
单价
/
单价
无法加载取货服务可用情况
* Please consult before ordering
Digital 2-electrode sensor, stainless steel, for conductivity measurement bundle 3417 sc.
Specifications
Technical Attributes
| Application | Wastewater & Drinking water |
| Cable Connection | IP 65 fiber-glass-reinforced polyester plug head |
| Cell Constant k | 1.00 cm⁻1 |
| Electrode Material | Body: SS 316L |
| Flow Rate | Minimum: 100ml/min (6l/hour) with homogeneous flow sample or 330 ml/min (20l/hour) |
| Length | 133.5 mm |
| Material | Internal electrode: Graphite External electrode: Graphite Insulator: PES |
| Measurement Range 2 | 1 - 5000 µS/cm SIPAN 32/34 |
| Measurement Range 3 | 1 - 20000 µS/cm MONEC 9125 |
| Measuring Principle | 2-electrode contacting conductivity |
| Measuring range | 1 - 20000 µS/cm SI792/794 |
| Operating Temperature Range | 150 °C maximum |
| Pressure Range | max 25 bar |
| Process Connection | 0.75 " NPT thread |
| Range | 1 - 20000 µS/cm SC controller |
| Temperature Sensor | Pt100 Class A |
| Vessel Constant | 1.00 if mounted in 8318 flow chamber |
| Warranty | 6 months |
| Wetted Materials | 316 SS, FKM/FPM o-ring, graphite internal electrode |
