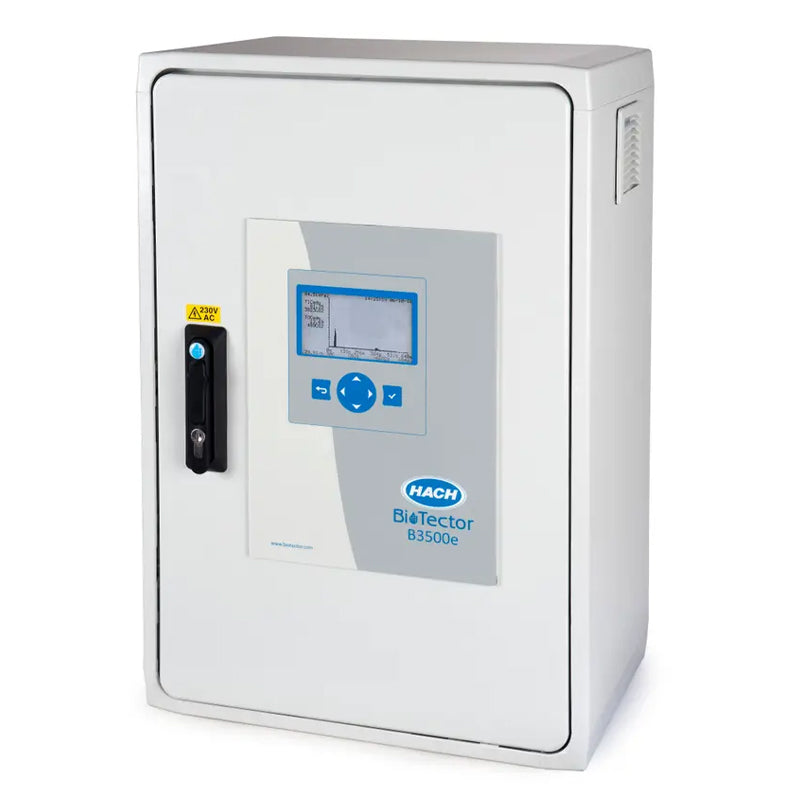

HACH BioTector B3500e Online TOC Analyser, 0 - 250 ppm, 1 stream, 115 V AC PN.BEAAAA152AAB2
HACH BioTector B3500e Online TOC Analyser, 0 - 250 ppm, 1 stream, 115 V AC PN.BEAAAA152AAB2
无法加载取货服务可用情况
* Please consult before ordering
Highest reliability in TOC analysis for water control meets low cost of ownership.
The Hach BioTector B3500e, with patented Two Stage, Advanced Oxidation Technology, provides accurate results you can be confident in, and gives you maximum reliability and uptime for effluent waste water applications. The analyzer requiries maintenance only twice a year for standard items like pump tube replacement and calibration, making it the most affordable TOC analyzer option available.
Because the analyzer body has one of the most compact analyzer footprints available, plants can free up critical wall space that can be used for other instruments.
With maximum reliability and uptime along with the lowest operating costs, the B3500e provides immediate, direct savings and is the industry’s choice when it comes to TOC analysis for wastwater effluent applications.
Many additional versions available on request.
The B3500e is tailor-made for monitoring final wastewater effluent and discharges to meet TOC requirement in water regulations. Being regulatory compliant will save you significant penalty costs while protecting the local environment.
Benefits
Ensure environmental compliance.
The B3500e is tailor-made for monitoring final wastewater effluent and discharges to meet TOC requirement in water regulations. Being regulatory compliant will save you significant penalty costs while protecting the local environment.
Save with low ownership costs.
Requiring you to replace the pump tube and calibrate only twice a year, the Hach BioTector B3500e provides low operating expenses.
Worry-free TOC with smart design.
The B3500e comes with a built in self-cleaning sample tube and reactor. This enables the B3500e to deliver trustworthy results even if your water contains some level of fat, oil, greases and sludge or has moderate pH swings.
Information you can rely on.
Using BioTector’s internationally proven and patented Two Stage Advanced Oxidation technology, the B3500e delivers maximum uptime, reliability and accuracy.
Access your results from everywhere.
With the B3500e TOC results can be viewed at your desk, your home, or while you are on the move with the BioTector Network Control Unit remote access.
Specifications
Technical Attributes
| Ambient Temperature | 5 - 45 °C |
| Automatic cleaning | Yes |
| Calibration | Automatic with Self-Cleaning Technology |
| Communication | Modbus RTU, Modbus TCP/IP & Profibus (when the Profibus option is selected, the digital output signals are sent through the Profibus converter with its specific communication protocol) |
| Cycle Time | Typically 7 minutes, 30 seconds |
| Data Storage | Previous 9,999 reaction data Previous 99 fault events |
| Display | High contrast 40 character x 16 line backlit LCD with LED backlight |
| EExp / Hazardous Location | No |
| Exceedance Tracking | No |
| Humidity | 5 - 85 % (non-condensing) |
| Languages | English |
| Measurement Method | Infrared measurement of CO2 after oxidation |
| Number of Channels | 1 |
| Number of sample streams | Single process stream and manual grab sample |
| Number of streams | Single stream |
| Options | Grab Sample, Cleaning, Sample Sensor |
| Oxidation Method | Patented Two-Stage Advanced Oxidation Process (TSAO) using Hydroxyl Radicals |
| Parameter | Measures TOC, TIC and TC |
| Particle Size | Up to 100 µm |
| Power Requirements (Hz) | 50/60 Hz |
| Power Requirements (Voltage) | 115 VAC |
| Range | 250 mg/L C (ppm) |
| Range Selection | Automatic or manual range selection |
| Repeatability | Standard range ± 3 % of reading or ± 0.45 mg/L C (ppm), whichever is greater |
| Sample Inlet Temperature | 2 - 60 °C |
| Service Interval | 6 month service intervals |
| User Interface | Microcontroller with membrane keyboard |
| Warranty | 12 months |
| Warranty | 1 |
| Weight | 46 kg |
| What's included? | Includes: B3500e analyser, Tubing, Fuses, Ferrules, Drain, Acid & Base Dip Tubes, C02 Filter & B3500e User Manual |
