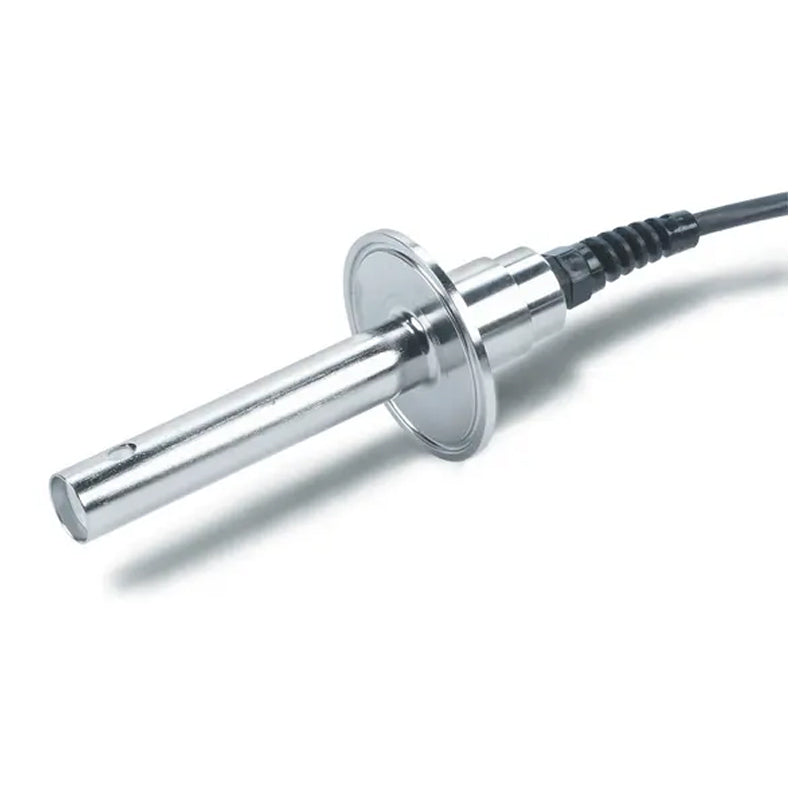

HACH Analog Sanitary Flange Style Conductivity Sensor, Cell Constant 1.0, 2 inch CIP Flange, Stainless Steel Electrode PN.3455C7A

High Performance Design

These sensors are manufactured to exacting tolerances using high quality, rugged materials for demanding applications including ultra-pure water, clean-in-place (CIP), and boiler/condensate monitoring. Each sensor is tested to determine its unique, absolute four-digit cell constant. Also, each sensor has a PT1000 RTD temperature element built into its tip for exceptionally fast response to changes in temperature with ±0.1 ºC accuracy.

Resistivity and Conductivity Measurement Capability

These enhanced performance sensors measure from 0.057 µS/cm or 18.2 MΩ (theoretically pure water) up to 200,000 µS/cm.

Versatile mounting styles

Sanitary Clean-in-Place (CIP) Style Sensors have 316 stainless steel electrodes and an integral 1-½-inch or 2-inch flange. These sensors can be installed using standard sanitary mounting hardware.

Full-Featured “Plug and Play” Hach SC Digital Controllers

There are no complicated wiring or set up procedures with any Hach SC controller. Just plug in any combination of Hach digital sensors and it's ready to use—it’s “plug and play.”

Specifications

Technical Attributes
