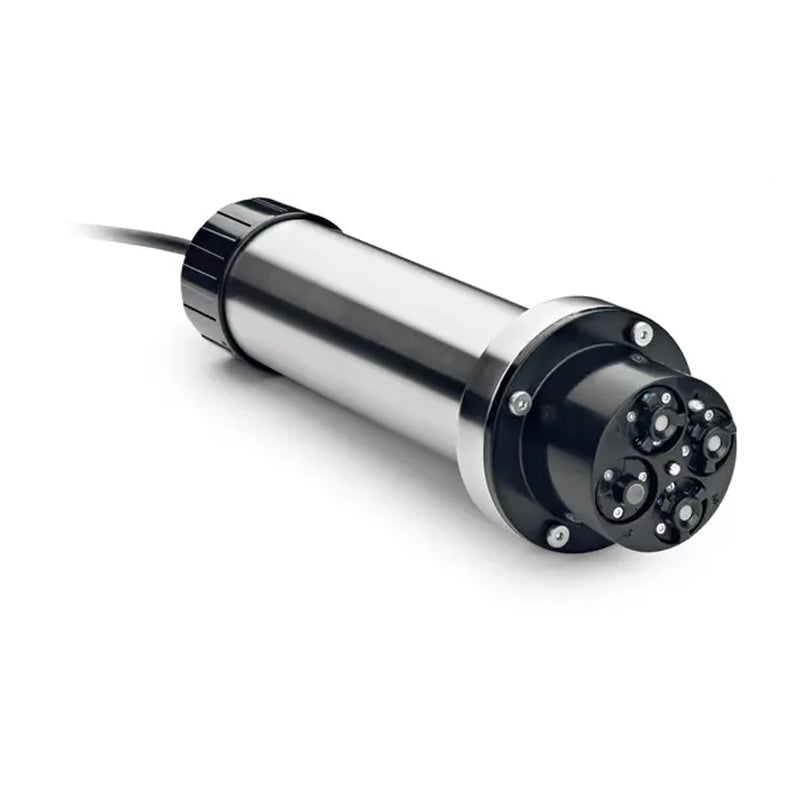

HACH A-ISE sc Low cost ISE Ammonium probe (immersion) without RFID, 10 m cable PN.LXV440.99.10012
HACH A-ISE sc Low cost ISE Ammonium probe (immersion) without RFID, 10 m cable PN.LXV440.99.10012
无法加载取货服务可用情况
* Please consult before ordering
Single ISE probe for the online measurement of Ammonium provides trending information and minimal maintenance, at an affordable price.
The special feature of the probe is the Cartrical technology. This provides reliable measured values and considerably reduced maintenance time and costs in comparison with conventional ISE probes.
Comes as a complete system from a single supplier. The probe is installed on the side of the tank. An SC controller completes the system. It can be extended to include an automatic cleaning unit with a compressor.
Prognosys is now available to provide confidence in your instrument readings. Prognosys will monitor and display the reliability of instrument measurement values and identify when upcoming maintenance tasks are due in an easy-to-read color display.
This instrument connects to Claros, Hach’s innovative Water Intelligence System, enabling you to seamlessly connect and manage instruments, data, and process – anywhere, anytime. The result is greater confidence in your data and improved efficiency in your operations. To unlock the full potential of Claros, insist on Claros Enabled instruments.
Benefits
Cost-Effective Trending Information
The A-ISE sc Sensor utilizes ion selective electrode (ISE) technology to provide your plant with high level trending information while saving money by eliminating the need for reagents and sample preparation.
Minimal Maintenance with Simple Cartridge Replacement
The sensor operates within in a Cartrical cartridge that comes factory calibrated so little maintenance is necessary. Cartridge replacement is simple: unscrew the old cartridge, plug in the new one, and the sensor is ready for measurement.
Simple, Accurate Calibration
Easy to perform, fail-safe calibration corrections compensate for naturally occurring calibration drift in ISE instruments. An advanced menu structure allows you to perform corrections without manual entry of values via Ethernet, SD card or Bluetooth*.
Specifications
Technical Attributes
| Accuracy | 5% of measured value + 0.2 mg/L (with standard solutions) NH4-N |
| Cable Length | 10 m fixed cable at sensor, available up to 100 m |
| Cable Length | Standard: 10 m (33.8 ft) Extension cables are available as an option in the following lengths: 5, 10, 15, 20, 30, 50 m (16.4, 33.8, 49.2, 65.6, 98.4, 164 ft) |
| Calibration Method | Sensorcode (calibrated sensor cartridge) or 2-point in-line value and matrix correction |
| Controller Compatibility | SC200, SC1000, SC4500. All controllers sold separately |
| Data Transfer | Current output, relays and bus communication via SC controller |
| Flow | < 4 m/s max. |
| Includes | Ammonia probe, sensor cartridge, user manual |
| Installation Angle | 45 ° ± 15 ° (vertical in flow direction) |
| Length | 320 mm |
| Lower Limit of Detection (LOD) | 0.2 mg/L NH4–N |
| Material | Cartridge: Stainless steel (1.4571), PVC, POM, ABS, NBR |
| Measurement Method | Potentiometric ion-selective electrodes for ammonium and potassium, reference system and temperature sensor |
| Measuring Interval | Continuous |
| Measuring uncertainty | ±5% of the measured value + 0.2 mg/L (with standard solution) NH4-N |
| Operating Temperature Range | Air: -20 - 45 °C (-4 - 113 °F) |
| Parameter | Ammonia |
| pH Range | 5 - 9 pH |
| Process Connection | 1 inch thread |
| Protection Class | IP68 |
| Range | 0 - 1000 mg/L NH4-N |
| Repeatability | ±5 % of the measured value (with standard solution) NH4-N |
| Response Time | < 3 min |
| Sample Pressure | 0.3 bar max. |
| Sample Temperature | 2 - 40 °C (35.6 - 104 °F) |
| Sensor Cartridge | With CARTRICAL plus technology: compact housing containing calibrated electrodes for ammonium, potassium, reference system and temperature sensor, all calibrated to each other; typical lifetime six months |
| Sensor Immersion Depth | 0.3 - 3 m (1.0 - 10 ft) |
| Storage Conditions | 5 to 40 °C (41 to 104 °F) sensor cartridge |
| Warranty | 12 months |
| Weight | 2.38 kg (5.25 lb) |
| Wetted Materials | Probe: Stainless Steel 1.4571; ASA + PC, silicon; PVC and PU; Sensor cartridge: PVC; POM; ABS; Stainless Steel 1.4571; NBR |
| What's included? | Ammonium probe, sensor cartridge, user manual |
