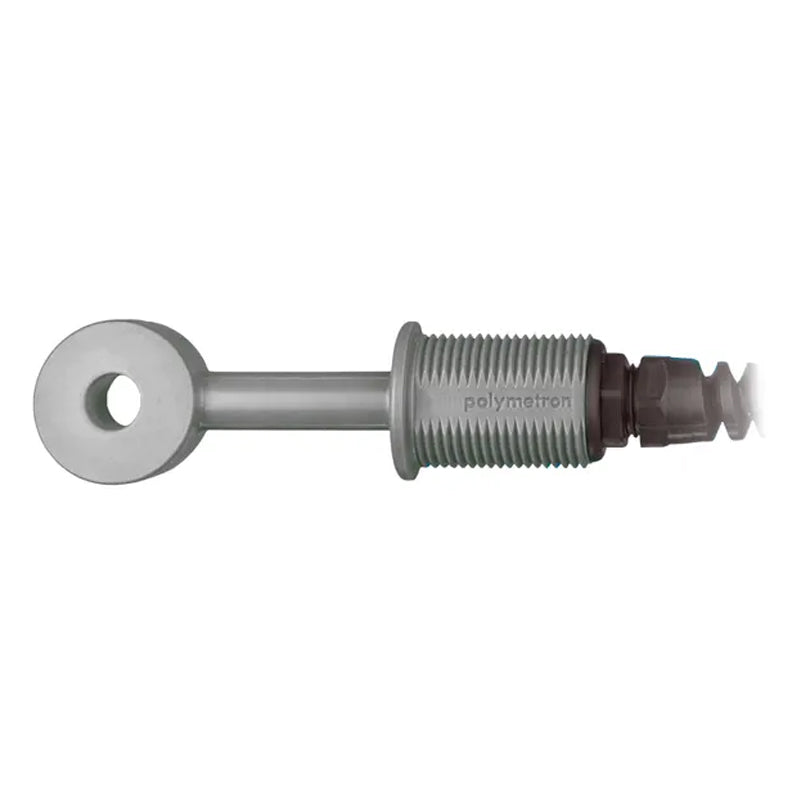

HACH 8398 Inductive Conductivity Sensor, DN50 Connection PN.08398=A=3000
HACH 8398 Inductive Conductivity Sensor, DN50 Connection PN.08398=A=3000
无法加载取货服务可用情况
* Please consult before ordering
This sensor is designed for harsh conditions, such as corrosive or fouling applications where reliable maintenance-free measurements are required. No electrode damage, no polarization effect. It has high chemical and mechanical resistance.
Benefits
Save time on design
A single design source and one product platform means you spend less time searching for design files or configuring components. Create and reuse your optimal design templates. Each sensor has a unique four-digit cell constant determined according to ISO 7888 and ASTM D 1125 standards.
Accelerate your installation
One source, interchangeable components, a common user interface, and one support team make installation faster and less complicated. Quickly and easily transfer user settings between conductivity loops.
Reduce training complexity
A single platform minimizes time required to teach and learn product operations, getting new systems in use faster.
Simplify maintenance and operation
Common menu guides reduce variability and provide step-by-step procedures for maintenance and calibration. Hach’s inductive conductivity sensors measure a broad range with high accuracy.
Specifications
Technical Attributes
| Cable Length | 5 m fixed cable |
| Cell Constant k | 2.35 |
| Gasket | 2 " EPDM gasket |
| Material | PEEK |
| Measuring Principle | Inductive conductivity measurement |
| Operating Temperature Range | 140 °C maximum |
| Pressure Range | max. 18 bar |
| Range | 0.2 - 2000 mS/cm |
| Repeatability | < ± 2 % or ± 0.004 mS/cm, whichever is greater |
| Weight | 0.700 kg |
| Wetted Materials | PEEK |
