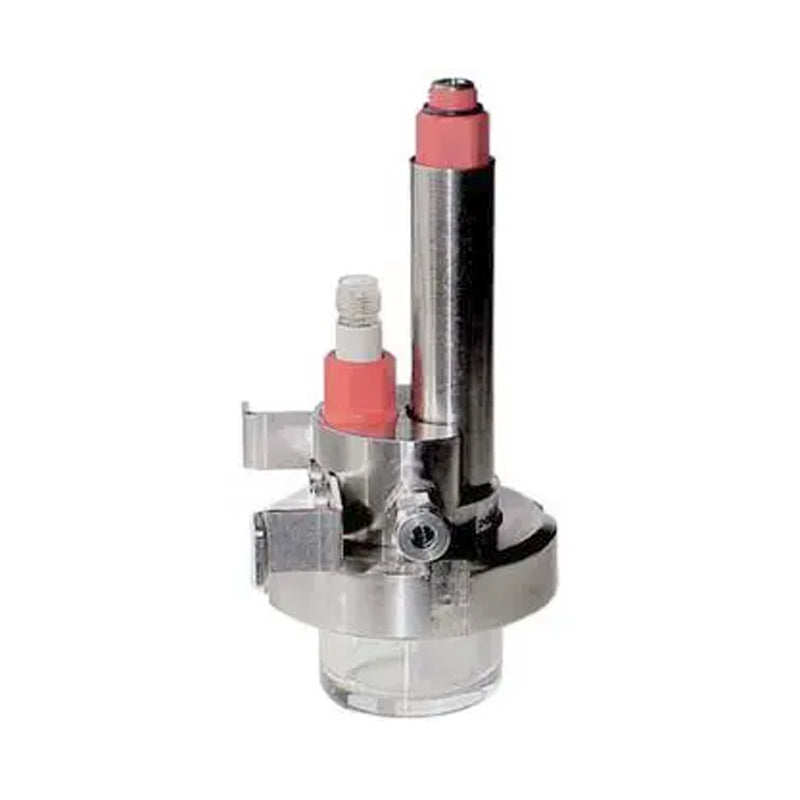

HACH 8362 Ultrapure Water pH Sensor PN.08362=A=0000
HACH 8362 Ultrapure Water pH Sensor PN.08362=A=0000
无法加载取货服务可用情况
* Please consult before ordering
Specially designed for pure water with no retaining areas, minimized junction potential and electrostatic charge and stray current protected. High accuracy and automatic temperature compensation.
Simple universal mounting as flow-through system and minimal maintenance (no filling solution required, sensor visible for
preventive maintenance, easily removable if necessary).
Easy calibration with a quick-release sample cup used as calibration vessel. Solution buffers and different cable lengths for pH and temperature available.
Benefits
Save time on design
A single design source and one product platform means you spend less time searching for design files or configuring components. Create and reuse your optimal design templates. The compact design saves valuable space.
Accelerate your installation
One source, interchangeable components, a common user interface, and one support team make installation faster and less complicated. Quickly and easily transfer user settings between pH loops. The self-pressurizing electrode is ready to operate and requires no maintenance or refilling of electrolyte reservoirs between normal electrode replacements
Reduce training complexity
A single platform minimizes time required to teach and learn product operations, getting new systems in use faster.
Simplify maintenance
Common menu guides reduce variability and provide step-by-step procedures for maintenance and calibration. Standard visual alerts across parameters notify operators when troubleshooting is required.
Optimize operation
Self-pressurizing electrodes and platinum RTD temperature sensor ensures accurate measurement. Hach’s unique conductive flow chamber and stainless steel sheath reduces drift common to less sophisticated probes.
Specifications
Technical Attributes
| Accuracy | ± 0.05 pH for conductivity > 0,1 µS/cm |
| Accuracy 3 | Temperature Sensor: ± 0.15 °C |
| Cable Length | 3 m |
| Drift | < 0.01 pH / 24h |
| Flow | 100 - 400 mL/min |
| Material | Flow Fitting: Electropolished 316 L stainless steel and PMMA |
| Pressure Range | max. 4 bar |
| Range | 2 - 12 pH |
| Sample Input | NPT thread |
| Special Notes | Composition: Flow fitting stainless steel pH electrode 8362 3 m cable |
| Temperature Sensor | Pt100 |
| Warranty | 6 months |
| What's included? | 8362 analog pH sensor, instruction manual |
