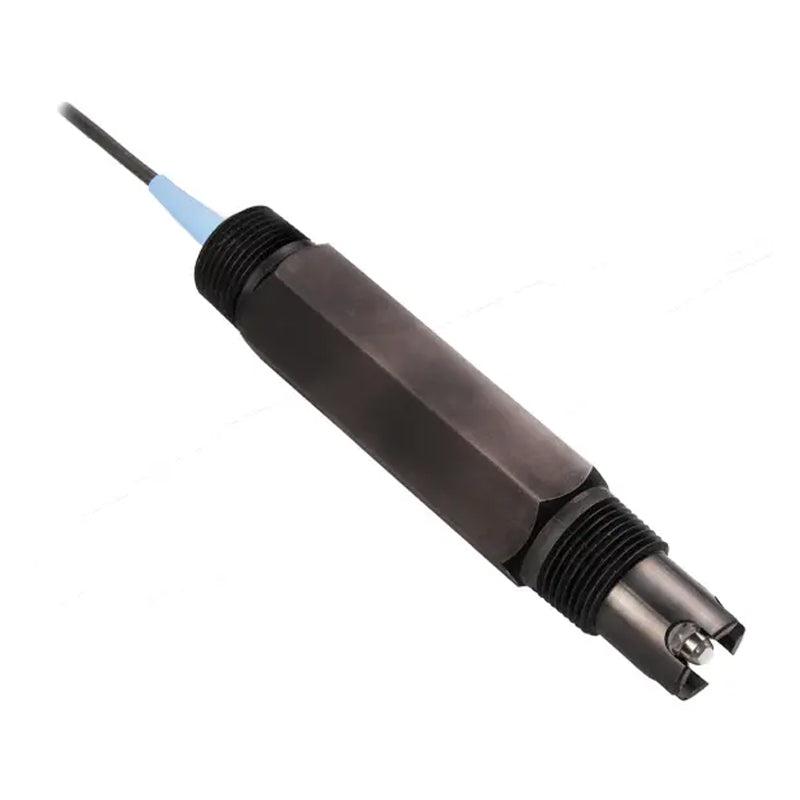

HACH 8351 Redox Probe for High Temperatures PN.08351=C=0000
HACH 8351 Redox Probe for High Temperatures PN.08351=C=0000
无法加载取货服务可用情况
* Please consult before ordering
A part of the most complete water analytics system for the Power industry. Hach provides a broad range of product options designed to work together into flexible solutions to meet your unique needs. Hach’s comprehensive approach saves you time on design, installation, training, maintenance, and operation.
Benefits
Save time on design
A single design source and one product platform means you spend less time searching for design files or configuring components. Create and reuse your optimal design templates.
Accelerate your installation
One source, interchangeable components, a common user interface, and one support team make installation faster and less complicated. Quickly and easily transfer user settings between pH/ ORP loops.
Reduce training complexity
A single platform minimizes time required to teach and learn product operations, getting new systems in use faster.
Simplify maintenance and operation
Common menu guides reduce variability and provide step-by-step procedures for maintenance and pH/ ORP calibration. This standard ¾” pH/ ORP sensor delivers fast and accurate measurement with two combination electrodes and a pt100 ohm RTD temperature element. The reference cell features a double-junction design for extended service life, and a built-in solution ground.
Specifications
Technical Attributes
| Application | ORP for high temps |
| Cable Length | 10 m fixed cable |
| Connector | Fixed cable |
| Drift | <3 mV/week |
| Electrolyte | Polymer electrolyte, KNO3 and KCl |
| Impedance | Reference impedance @ 25 °C: <50 kΩ Glass impedance @ 25 °C: Platinum |
| Length | 150 mm |
| Material | Reference Electrode: Ag/AgCl |
| Operating Temperature Range | Temperature Maximum: 110 °C (230 °F) |
| Pressure Range | 3.5 bar at 110 °C |
| Pressure Range | Maximum Pressure: 10 bar (145 psi) at 80 °C |
| Process Connection | 0.75 " NPT thread at both ends |
| Range | -1500 mV - 1500 mV |
| Reference electrode | None |
| Slope Range | N/A |
| Temperature Sensor | PT100 |
| Warranty | 6 months |
| Weight | 0.62 kg |
| What's included? | 8351 ORP sensor with protective cap, user instructions |
