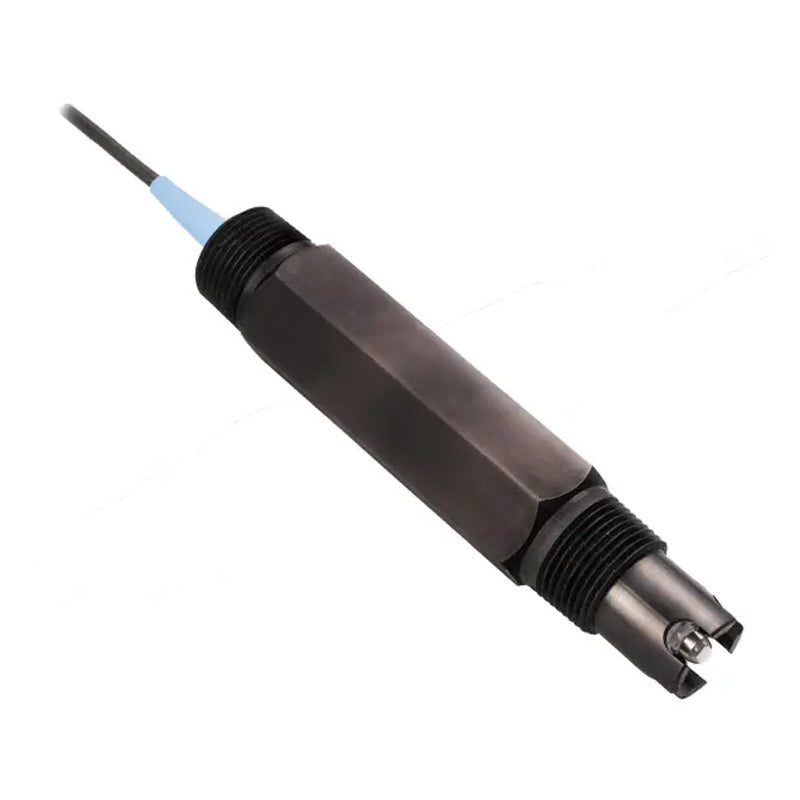

HACH 8350 pH combination sensor, ¾", analogue, for fouling samples PN.08350=C=0005
HACH 8350 pH combination sensor, ¾", analogue, for fouling samples PN.08350=C=0005
无法加载取货服务可用情况
* Please consult before ordering
A part of the most complete water analytics system for the Power industry. Hach provides a broad range of product options designed to work together into flexible solutions to meet your unique needs. Hach’s comprehensive approach saves you time on design, installation, training, maintenance, and operation.
Benefits
Save time on design
A single design source and one product platform means you spend less time searching for design files or configuring components. Create and reuse your optimal design templates.
Accelerate your installation
One source, interchangeable components, a common user interface, and one support team make installation faster and less complicated. Quickly and easily transfer user settings between pH/ ORP loops.
Reduce training complexity
A single platform minimizes time required to teach and learn product operations, getting new systems in use faster.
Simplify maintenance and operation
Common menu guides reduce variability and provide step-by-step procedures for maintenance and pH/ ORP calibration. This standard ¾” pH/ ORP sensor delivers fast and accurate measurement with two combination electrodes and a pt100 ohm RTD temperature element. The reference cell features a double-junction design for extended service life, and a built-in solution ground.
Auto-diagnostic of electrodes: glass and reference impedances self-checking
Auto-diagnostic of electrodes: glass and reference impedances self-checking
Specifications
Technical Attributes
| Accuracy | 0.05 pH at 25 °C |
| Application | Fouling environments |
| Cable Length | 10 m |
| Cable Length | 10 m |
| Connector | Fixed cable |
| Diaphragm | Flat PTFE junction |
| Drift | < 2 mV/week non-cumulative |
| Electrolyte | KNO3 and KCl |
| Length | 150 mm |
| Material | Sensor: Glass, CPVC, |
| Operating Temperature Range | Temperature Maximum: 110 °C (230 °F) |
| Pressure Range | 0 bar at 110 °C |
| Pressure Range | Maximum Pressure: 10 bar (145 psi) at 80 °C |
| Range | 0 - 12 pH, ± 0.05 pH |
| Reference electrode | None |
| Response Time T95 | 10 s |
| Sensor Thread | 0.75" NPT at both sensor ends |
| Special notes | Liquid earth rod, domed glass with guard |
| Special notes | Temperature sensor in contact with medium |
| Special Notes | Not suitable for water samples containing fluoride |
| Temperature Sensor | PT100 |
| Warranty | 6 months |
| Wetted Materials | CPVC, PTFE junction, glass, 316SS, |
