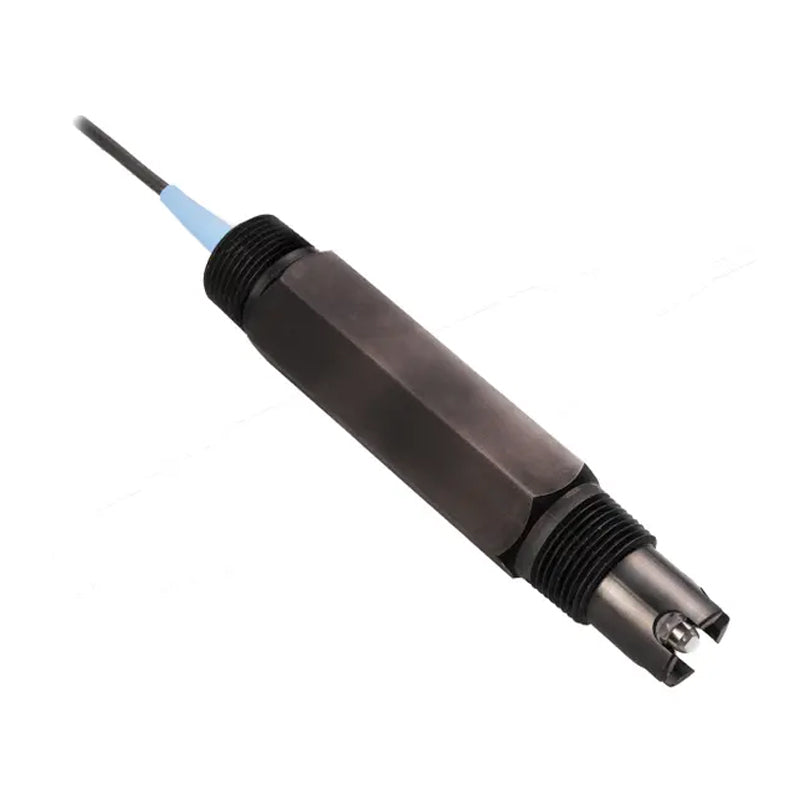

HACH 8350 pH combination sensor, 3/4", with Pt100, for high temperatures PN.08350=C=0004

HACH 8350 pH combination sensor, 3/4", with Pt100, for high temperatures PN.08350=C=0004

$691.69 USD
$691.69 USD
促销 售罄

* Please consult before ordering

With PPS body, 10 m cable and liquid earth rod. Tmax 110 °C.

Benefits

Quick response time for accurate temperature compensation (built-in Pt100)



Optimised life-expectancy: high resistance to poisoning due to the double junction



Chemical resistance of body and junction materials, glass bulb protection against shocks



Maintenance free: Combination gelified electrode



Auto-diagnostic of electrodes: glass and reference impedances self-checking



Possible installation from all positions, horizontal and upside down

Specifications



Technical Attributes

Accuracy 0.05 pH at 25 °C
Application High temperature
Cable Length 10 m
Cable Length 10 m
Connector Fixed cable
Diaphragm Flat PTFE junction
Drift < 2 mV/week non-cumulative
Electrolyte KNO3 and KCl
Length 150 mm
Material Sensor: Glass
Operating Temperature Range Temperature Maximum: 110 °C (230 °F)
Pressure Range 0 bar at 80 °C
Pressure Range Maximum Pressure: 10 bar (145 psi) at 80 °C
Range 0 - 14 pH, ± 0.05 pH
Reference electrode None
Response Time T95 10 s
Sensor Thread 0.75" NPT at both sensor ends
Special notes Liquid earth rod
Special notes Temperature sensor in contact with medium
Special Notes Not suitable for water samples containing fluoride pH <6
Temperature Sensor PT100
Warranty 6 months
What's included? 8350 pH sensor with protective cap, user manual
