HACH

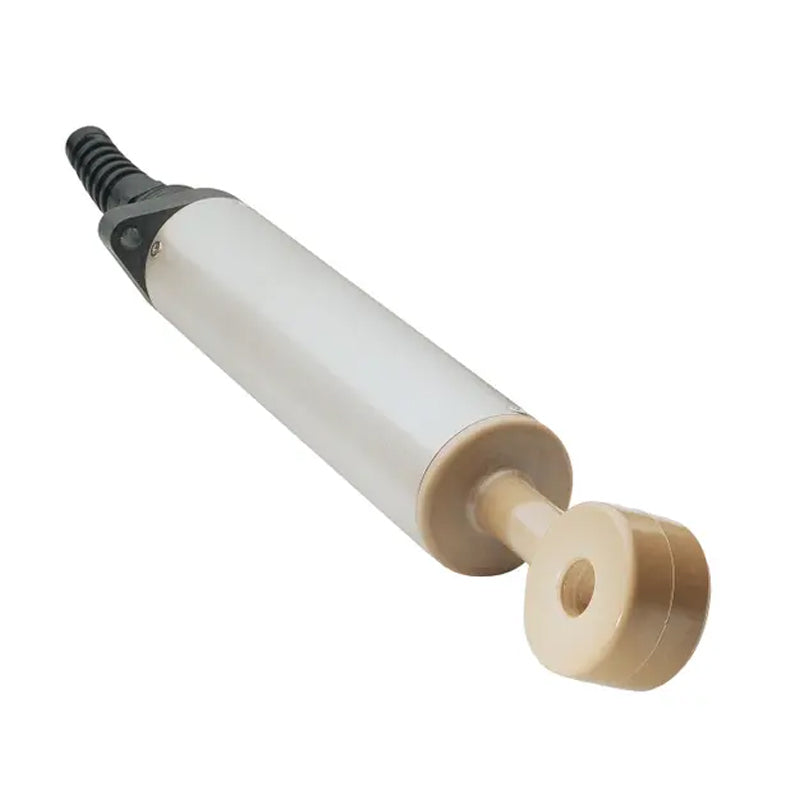

HACH 3798-S sc Digital inductive conductivity sensor, 10m cable PN.LXV428.99.00001

HACH 3798-S sc Digital inductive conductivity sensor, 10m cable PN.LXV428.99.00001

$1,522.50 USD
$1,522.50 USD
促销 售罄

* Please consult before ordering

Immersion probe with integrated AD electronics, for operation with SC controller.

This instrument connects to Claros, Hach’s innovative Water Intelligence System, enabling you to seamlessly connect and manage instruments, data, and process – anywhere, anytime. The result is greater confidence in your data and improved efficiency in your operations. To unlock the full potential of Claros, insist on Claros Enabled instruments.

Benefits

Proven sensor with digital technology



Inductive sensor for heavily soiled media



Factory-calibrated



Plug and play with SC controllers

Specifications



Technical Attributes

Accuracy ±1% of actual value or ±0.004 mS/cm whichever is greater
Cable Length 10 m hard wired, Polyurethane
Calibration Method Zero value calibration in air. 1-point calibration with defined resistance or with standard solution
Cell Constant k 2.35 cm-1
Certifications CE (incl. RoHS)
Diameter 43 mm
Enclosure Rating IP68
Flow < 4 m/s
Interface Modbus
Length 370 mm
Maintenance Interval 2 years or after 1000 hours change of sealing
Material Stainless steel metal housing, PEEK, Polyurethane, PPS
Operating Temperature Range -20 - 50 °C
Pressure Range Max. 20 m immersion depth
Range 250 µS/cm - 2500 mS/cm
Reproducibility < 0.2%
Response Time T90 < 2 s
Sensor Immersion Depth 20 m / 2 bar
Sensor Thread 1" NPT outer thread
Storage Conditions -20 - 60 °C (-4 - 140 °F), 95% relative humidity (non-condensing)
Temperature Accuracy ±0.2 °C
Temperature Compensation Automatic or manual
Temperature Compensation Automatic or manual
Warranty 12 months
Weight < 1 kg (2.2 lb)
Wetted Materials PEEK
What's included?

Includes: sensor with cable and manual
