Endress+Hauser FTL31-AA4U2AAWBJ Vibronic Point level detection Liquiphant FTL31 PN.FTL31-AA4U2AAWBJ

*Please consult before ordering (price determined by configuration)

Specs at a glance

• Process temperature

  -40 °C ... 150 °C
  (-40 °F ... 302 °F)

• Process pressure / max. overpressure limit

  Vacuum ... 40 bar
  (Vacuum ... 580 psi)

• Min. density of medium

  >0,7g/cm³
  (>0,5g/cm³ optional)

  Field of application

  Liquiphant FTL31 is a point level switch for liquids. The FTL31 is designed for industrial applications in all industries, mainly the machinery industry. The Liquiphant is used for overfill protection or pump dry-run protection in cleaning systems. The IO-Link capability allows easy parameter setting.
  Compact:
  - Smallest vibronic sensor in the market
  Safe:
  - Continuous self-monitoring
  -Reliable switching independent of media properties
  Easy:
  - No calibration
  - Plug & play
  - IO-Link connectivity

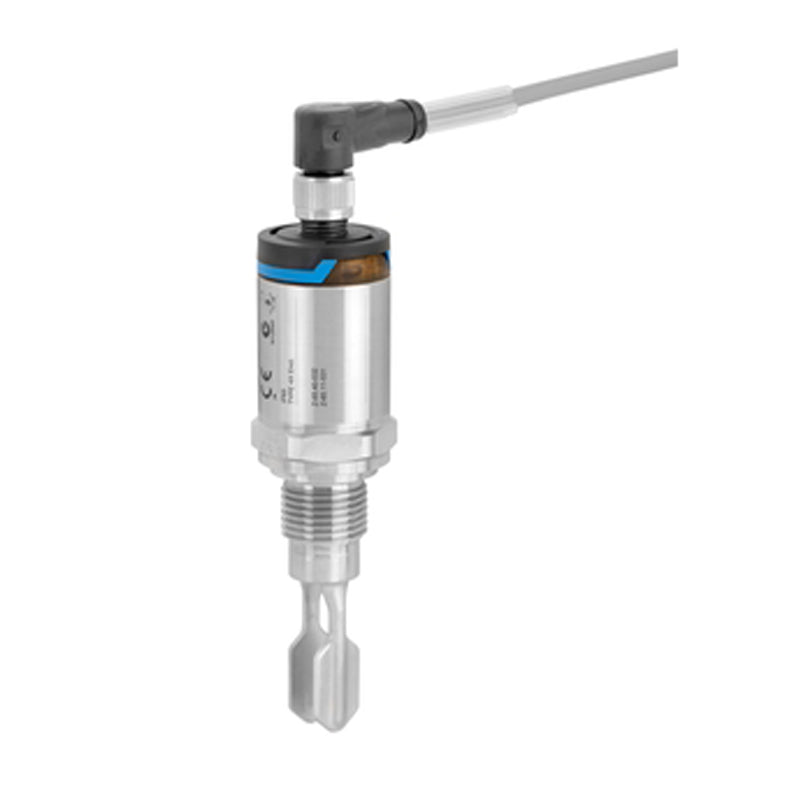

  Point level switch in compact design with stainless steel housing.

  • Process connections: Threads

  • Temperature: -40 to +150°C (-40 to +302°F)

  • Pressure: -1 to +40bar (-14.5 to 580psi)

  • Surface roughness: 3.2µm

  • Overfill protection and leakage detection WHG, marine approvals, final inspection report

  Benefits

  • Designed according to highest requirements to quality and environmental sustainability. The self-monitoring Liquiphant offers safe switching also in case of power supply loss.

  • Independent of changing media properties an accurate switching point is offered. IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools

  • A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles

  • No calibration is required, no specific know-how or tools (e.g. software) necessary

  • Robust design made of stainless steel (316L) assures highest durability

  • A modular design offers different process temperatures and the widest variety of process connections and accessories in the market to fit every application

  • No mechanically moved parts, free of maintenance
