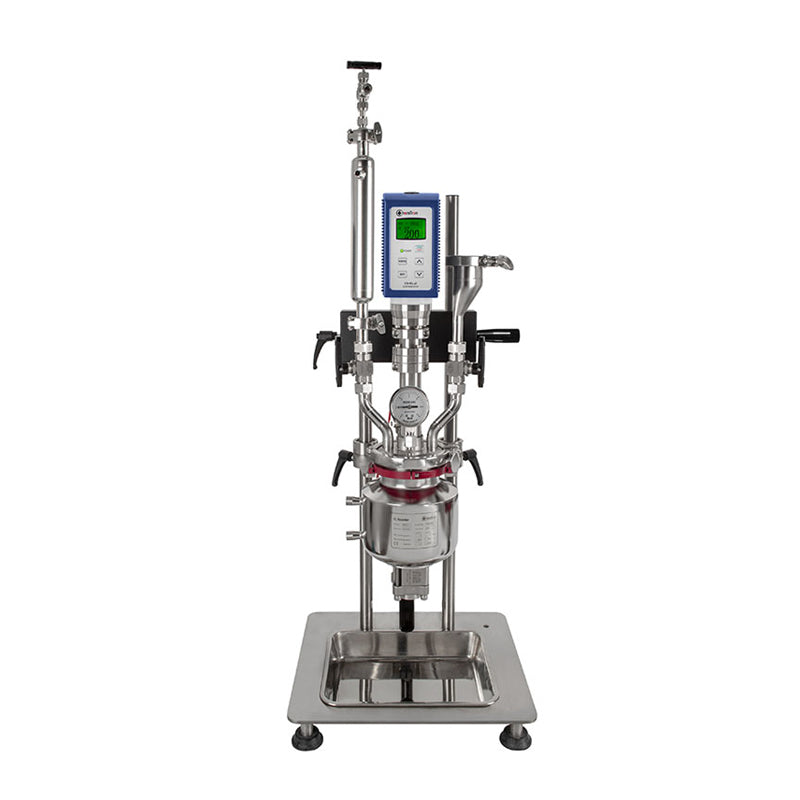

S.S. Vacuum Reactor VR-500

Pressure:-1~5bar;Max. Temperature:300℃

Description

S.S. Vacuum Reactor
Bench top reactors are ideally suitable for general experimental runs in lab. This series reactor is available in stainless steel, with or without jacket. The usable volume of the reactor can vary
between 500 ml and 5,000 ml using different reactor vessels.
The VR-500/1000/2000/5000 reactor is notable for its ease of handling. The reactor is closed using a manual quick closure. The reactor seal is established using a conical flange lock and O-ring
seal of PTFE, FKM, or FFKM. The appropriate fitting inserts are available in stainless steel. A total of 5 connection options are provided in the lid from VR-500 to VR-2000, and 7 for VR-5000.
Features
> 500, 1000, 2000 or 5000 ml / 5 bar / 300℃
> With or without jacket, with or withour bottom outlet
> Quick closure chain design
> O-seal ring made of PTFE,Viton or FFKM
> Heating by electrical or thermostated mantle
> Stirring by overhead stirrer with double mechanical compilation
> Optionally internal heating/cooling coil


Specification

Model

VR-500

Performance and Material

Material

316L S.S.

Max. Temperature

300℃
Pressure

-1~5bar

Jacketed vessel

Volume

500ml

Flange

DN89

Inner Dia.

83mm

Inner Height

80mm

O-ring

Material

PTFE（ Viton, FFKM for optional）

Size

89mm

Lids

Flange

DN89

Center Ports

M38X2

Other ports

1/4" and 1/2" NPT

Heating unit ( Optional)

Julabo heating and refrigerated circulators

Stir

Type of sealling

Double mechanical seal

Motor

Overhead stirring motor

Speed
20~1800rpm( Possible for other options)

Frame

Type
Electric lifting bench top

Size

600*360/700mm( L*W*H )

Liquid receiving tray

Stainless steel
