ChemTron VR-series Reactors Pilot Plant Scale S.S. Reaction System VR-20L(* Please Contact Us for the Best Quote and to Confirm Delivery Time.)

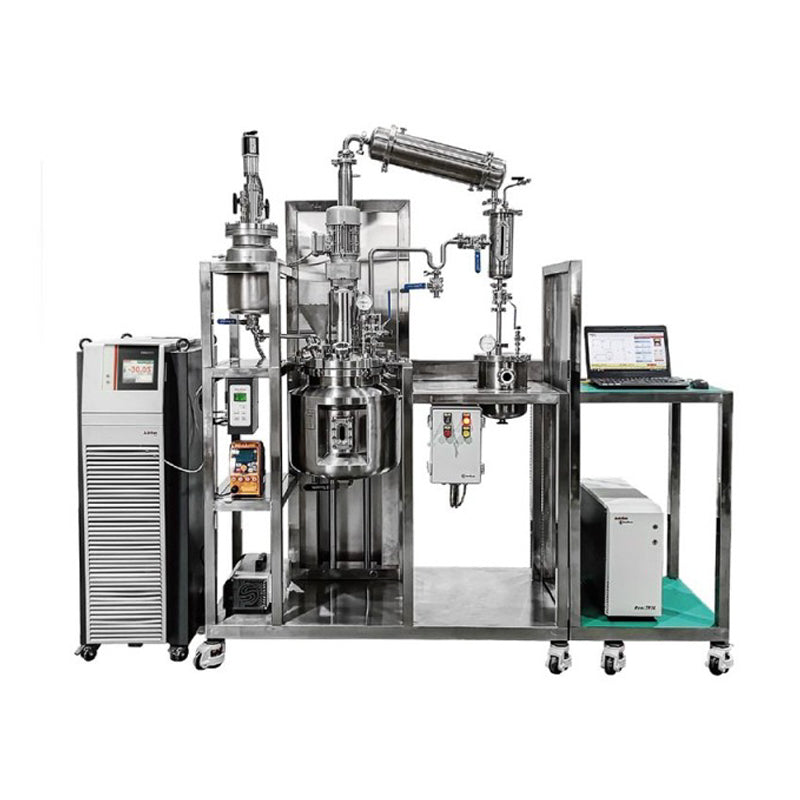

Pilot Plant Scale S.S. Reaction System VR-20L

Max. Temperature：300℃；Max. Pressure：-1~5bar

Description

Pilot Plant Scale S.S. Reaction System

VR series S.S. reaction system are ideally suitable for Pilot Plant experimental runs. This series reactor is available in stainless steel, with or without jacket, The usable volume of the reactor can vary between 10L and 50L using different reactor vessels.

The VR-10L/20L/30L/50L reactor is notable for its ease of handling. The reactor is closed using clamp bolts for the lid. The reactor seal is established using a conical flange lock and O-ring seal of PTFE, silicone or Viton. The appropriate fitting inserts are available in stainless steel. A total of 7 connection options are provided in the lid from VR-10L to VR-50L

Features

> 10, 20, 30 or 50L / -1 to 5 bar / 300℃

> The vessel with bottom valve, with or without jacket

> Strong S.S. frame used to fix the reaction vessel and lid

> O-seal ring made of PTFE, silicone or Viton

> Temperature control by heating and cooling circulator

> Stirring by overhead stirrer

> Optionally internal heating/cooling coil

> Distillation unit and receiver included

Specification
