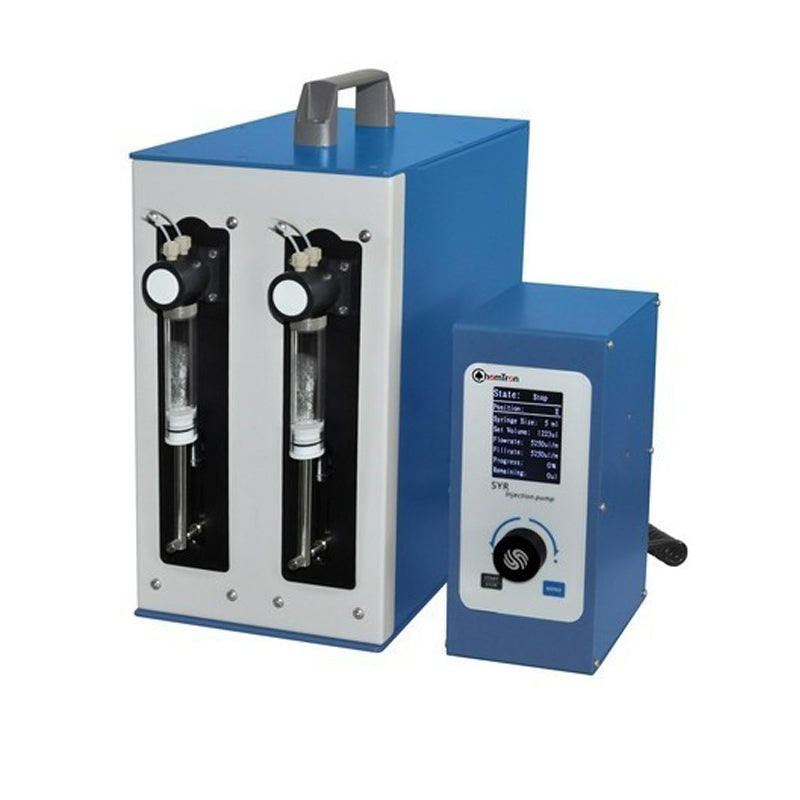

ChemTron Vdose Series Liquid Syringe Pumps / Dispensers Vdose 2400
ChemTron Vdose Series Liquid Syringe Pumps / Dispensers Vdose 2400
无法加载取货服务可用情况
* Please Contact Us for the Best Quote and to Confirm Delivery Time
Vdose Series Liquid Syringe Pumps / Dispensers
Liquid flow rate: 1.25uL/min-375ml/min; the material of the part in contact with the liquid is glass or PTFE
A standard syringe pump is composed of a control unit and a dispensing unit, of which there are two types of dispensing units: single-channel and double-channel dispensing units. Vdose series syringe pumps can automatically add and transfer liquids, and complete the transfer according to the speed and order set by the customer. Customers can also use the control software to complete custom complex liquid dispensing and transfer.
> Large-screen TFT display can clearly display dispensing parameters and real-time progress
> 11 specifications of dispensing units are optional, the smallest volume is 20uL, the largest is 50ml, and dispensing units of different volumes can be replaced easily
> Liquid flow rate: 1.25uL /min-375ml/min
> All parts in contact with the liquid are made of glass or PTFE
> The three-port valve automatically switches, automatically circulates the extraction output, and completes the extraction or output of the liquid
> The operating valve can be set to facilitate the recovery of the remaining liquid, and the entire liquid operation The process can be completed without disassembling the pipeline
> RS-232/485 digital communication function, can be connected to PC or PLC for remote control
Technical Parameters
|
model |
Vdose2400 |
|
|
Dispensing unit |
double lane |
|
|
Liquid flow rate |
1.25μl/min~375ml/min |
|
|
precision |
≤ 5‰ |
|
|
weight |
9.1kg |
|
|
Dimensions (H x W x D mm) |
305 x 178 x 330 |
|
|
Dispensing tube |
optional volume |
25μl ~50m |
|
material |
glass, PTFE piston |
|
|
resolution |
1/6000 of the total volume of the dispensing unit |
|
|
features |
Dispensing unit is easily replaced |
|
|
valve |
material |
Viton |
|
features |
3~8 can specify the address channel |
|
|
communication function |
RS232/485 |
|
|
Voltage |
110~240V,50/60Hz |
|
|
order number |
V900702 |
|
ordering information
|
order number |
describe |
|
V900703 |
Single-channel liquid syringe pump, including control unit and dispensing unit (need to indicate the valve channel and volume of dispensing unit) |
|
V900702 |
Two-channel liquid injection pump, including control unit and dispensing unit (need to indicate the valve channel and volume of dispensing unit) |
|
optional accessories |
|
|
V900700-4 |
25μL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-5 |
50μL Syringe Dispenser, Glass, PTFE Stopcock |
|
V900700-6 |
100μL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-7 |
250μL Syringe Dispenser, Glass, PTFE Stopcock |
|
V900700-8 |
500μL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-9 |
1mL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-10 |
2.5mL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-11 |
5mL Syringe and Dispenser, Glass, PTFE Piston |
|
V900700-12 |
10mL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-13 |
25mL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-14 |
50mL Syringe Dispenser, Glass, PTFE Piston |
|
Install starter kit (includes tubing and necessary adapters) |
|
|
V900700-19 |
20 feet, 1/8"OD tubing |
|
V900700-20 |
100 feet, 1/8"OD tubing |
|
V900700-21 |
20 feet, 1/16"OD tubing |
|
V900700-22 |
100 feet, 1/16"OD tubing |
