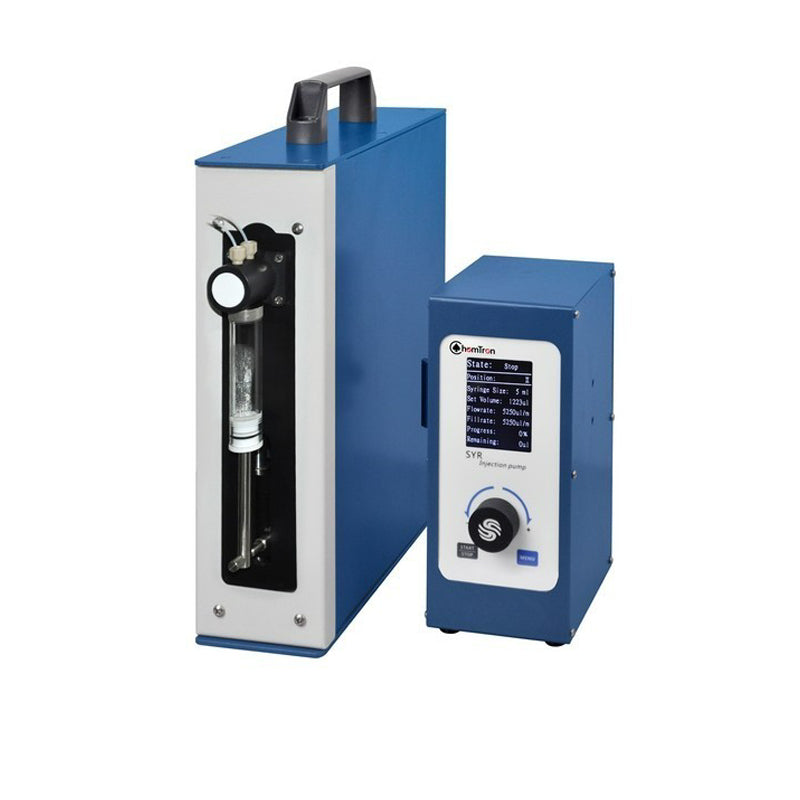

ChemTron Vdose Series Liquid Syringe Pumps / Dispensers Vdose 1200
ChemTron Vdose Series Liquid Syringe Pumps / Dispensers Vdose 1200
无法加载取货服务可用情况
* Please Contact Us for the Best Quote and to Confirm Delivery Time
Vdose Series Liquid Syringe Pumps / Dispensers
Liquid flow rate: 1.25uL/min-375ml/min; the material of the part in contact with the liquid is glass or PTFE
Vdose Series Liquid Syringe Pumps / Dispensers
The standard injection pump is composed of two parts: control unit and dispensing unit. Dispensing unit has two kinds: single channel and double channel dispensing unit. The Vdose series of injection pumps accurately and automatically refill and transfer fluids at customer-determined rates and rates
In order to complete the transfer, customers can also use the control software to customize the complex liquid dispensing transfer.
> Large screen TFT display can clearly display the injection parameters and real-time progress
> 11 specifications of dispensing units are optional, the minimum volume of 20uL, the maximum of 50ml, a variety of different volumes of dispensing units easily replaced
> Liquid flow rate: 1.25uL/min-375ml/min
> All parts in contact with the liquid are made of glass or PTFE
> Three-port valve automatic switching, automatic circulation extraction output, complete extraction or output liquid
> The operation valve can be set to facilitate the recovery of the remaining liquid. The whole liquid operation process can be completed without removing the pipeline
> RS-232/485 digital communication function, can be connected to PC or PLC remote control
Technical Parameters
|
model |
Vdose1200 |
|
|
Dispensing unit |
Single track |
|
|
Liquid flow rate |
1.25μl/min~375ml/min |
|
|
precision |
≤ 5‰ |
|
|
weight |
5.5 kg |
|
|
Dimensions (H x W x D mm) |
305 x 89 x 330 |
|
|
Dispensing tube |
optional volume |
25μl ~50m |
|
material |
glass, PTFE piston |
|
|
resolution |
1/6000 of the total volume of the dispensing unit |
|
|
features |
Dispensing unit is easily replaced |
|
|
valve |
material |
Viton |
|
features |
3~8 can specify the address channel |
|
|
communication function |
RS232/485 |
|
|
Voltage |
110~240V,50/60Hz |
|
|
order number |
V900703 |
|
ordering information
|
order number |
describe |
|
V900703 |
Single-channel liquid syringe pump, including control unit and dispensing unit (need to indicate the valve channel and volume of dispensing unit) |
|
V900702 |
Two-channel liquid injection pump, including control unit and dispensing unit (need to indicate the valve channel and volume of dispensing unit) |
|
optional accessories |
|
|
V900700-4 |
25μL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-5 |
50μL Syringe Dispenser, Glass, PTFE Stopcock |
|
V900700-6 |
100μL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-7 |
250μL Syringe Dispenser, Glass, PTFE Stopcock |
|
V900700-8 |
500μL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-9 |
1mL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-10 |
2.5mL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-11 |
5mL Syringe and Dispenser, Glass, PTFE Piston |
|
V900700-12 |
10mL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-13 |
25mL Syringe Dispenser, Glass, PTFE Piston |
|
V900700-14 |
50mL Syringe Dispenser, Glass, PTFE Piston |
|
Install starter kit (includes tubing and necessary adapters) |
|
|
V900700-19 |
20 feet, 1/8"OD tubing |
|
V900700-20 |
100 feet, 1/8"OD tubing |
|
V900700-21 |
20 feet, 1/16"OD tubing |
|
V900700-22 |
100 feet, 1/16"OD tubing |
