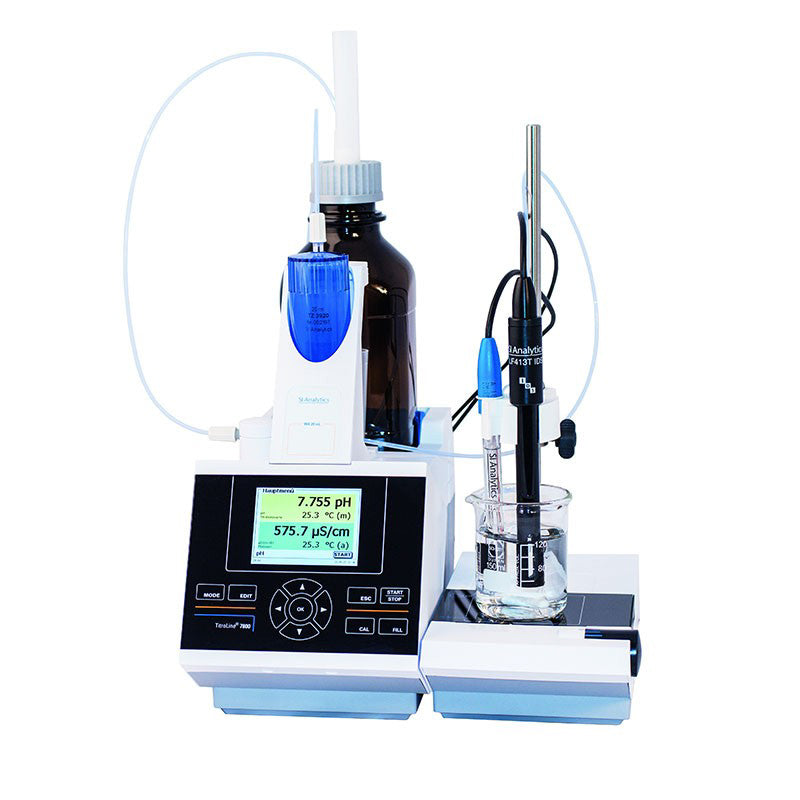

ChemTron TL7800 Multi-function Titrator

ChemTron TL7800 Multi-function Titrator

$99,999.00 USD
$99,999.00 USD
促销 售罄

* Please Contact Us for the Best Quote and to Confirm Delivery Time

TL7800 Multi-function Titrator

Measuring range: -3.0…18.00pH, -2000…+2000mV, 0-100mA, -75…+195°C; Resolution: 0.001pH, 0.1mV, 0.1µA, 0.1°C

TL7800 Multi-function Titrator

IDS Technology Meets Titrator!
The new type of Titrator TL 7800 from Youlaibo has the same technical parameters and performance as TL 7750, but German engineers endow it with a more cutting-edge measurement technology - IDS technology. TL 7800 can be used as an expert automatic potentiometric titrator, It can also be transformed into a volumetric moisture titrator, and TL 7800 can also be connected to intelligent digital sensors, such as IDS-pH sensor, IDS-OPR sensor, and IDS-ORP/DO sensor. Therefore, TL 7800 is not only a multi-functional titrator, but also a multi-parameter measuring instrument. "IDS" technology means that the sensor itself can convert analog signals into digital signals and communicate with the host. This technology can avoid conventional analog technology measurement. Inaccurate measurement due to external humidity, electromagnetic interference, metal connection interference, etc.
> The multifunctional potentiometric titrator can meet the test requirements of potentiometric titration and volumetric Karl Fischer moisture titration at the same time
> The test function of a TL 7750 is equivalent to the potentiometric titration function of a TL 7000, plus the volumetric titration function of a TL 7500 KF, plus a multi-parameter measuring instrument
> It can be connected with conventional titration electrodes and various IDS electrodes, through intelligent digital signal transmission, to prevent the influence of external environment
> High-definition full-color display screen ensures that experimenters can monitor at long-distance and multi-angle positions
> Equipped with a new generation of titration module, which can save relevant reagent information data
> Perfect data communication interface can expand the application function of the device, and can connect USB keyboard, USB printer, USB flash memory, balance, computer, etc.
> Can be used in conjunction with continuous measuring devices, suitable for laboratories with many sample testing tasks
> Wireless Sensor Identification automatically recognizes SI Analytics ID and IDS electrodes which immediately send specific data to the titrator. Therefore, the TL7800 always uses the correct calibration data. Erroneous measurements are eliminated
> Ideal for measurement and titration tasks of pH and conductivity
> Storage of results using USB port (PDF and CSV formats), including method transfer

Technical Parameters

model TL 7800
show 3.5-inch-1/4VGA TFT high-definition display screen, which can display the titration curve in real time
control touch screen/keyboard/mouse
Measurement methods 50 types
App types Manual titration, precision pipetting, solution preparation, automatic potentiometric titration, pH endpoint titration, dynamic and linear titration, permanent stop titration, non-aqueous and constant pH titration, volumetric Karl Fischer titration
PH/Mv electrode interface DIN 19262 or BNC
Permanent stop titration interface Double platinum electrode interface, the interface specification is 2×4mm
IDS electrode interface Connect IDS electrodes (pH, mV, LF)
Temperature electrode interface Pt 1000/NTC 30
Measuring range -3.0…18.00pH, -2000…+2000mV, 0-100mA, -75…+195℃ Remark: If connecting IDS electrode, the measurement range and accuracy depend on the electrode
resolution 0.001pH, 0.1mV, 0.1µA, 0.1°C
precision 0.002±1 Digit (pH),0.10±1 Digit (mV), 0.2±1 Digit (µA), 0.2K±1 Digit (℃ )
Burette model 5/10/20/50ml optional
Dispensing piston precision 20000 steps
printer Connectable (USB-A)
balance Connectable (RS-232-2)
Continuous titration unit Can be connected to TW to realize continuous testing of multiple samples
Titration software Can be connected to TitriSoft 3.0 titration software
IDS electrodes connectable
Wireless electrode identification function Recognizable wireless electrodes
