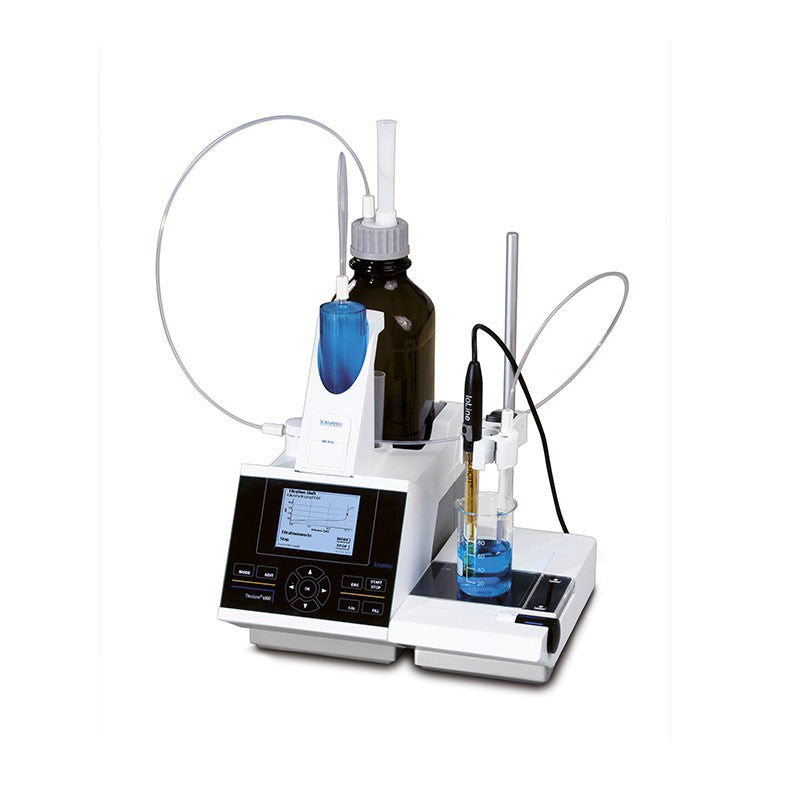

ChemTron TL 7000 Comprehensive Titrator

ChemTron TL 7000 Comprehensive Titrator

$99,999.00 USD
$99,999.00 USD
促销 售罄

* Please Contact Us for the Best Quote and to Confirm Delivery Time

TL 7000 Comprehensive Titrator

Measuring range: -3.0…18.00pH, -2000…+2000mV, 0-100µA, -75…+150°C; Resolution: 0.001pH, 0.1mV, 0.1µA, 0.1°C

TL 7000 Comprehensive Titrator

TL 7000 is a cost-effective potentiometric titrator, which can be configured for a variety of complex titrations, and 50 titration methods can be stored inside
> Large-screen high-definition color display, titration parameters and real-time curves can be observed remotely
> It can be connected with a variety of measurement accessories to extend the measurement function: (1) titration control software; (2) balance; (3) constant temperature titration cup; (4) computer, printer, etc.
> When there is a failure during self-test or titration, the screen will display error information and sound and light alarm
> During the whole experiment process, complex parameter setting and result calculation can be easily completed
> Regarding the calculation function, you can choose from 8 built-in programs to perform complex calculations. The report content can include method name, sample name, user name, date and time, calibration status, automatic or manual addition, etc., conforming to GLP specification
> Connect high-resolution pH/mV electrodes and temperature sensors for pH/ion/redox/photometric titration
> Endpoint titration with polarized electrodes
> Built-in standard methods, such as analysis of FOS/TAC, alkalinity, total acid, etc. in beverages
> Linear (fixed increment) and dynamic equivalence point titration modes
> Titration parameters include: pH, mV and µA Endpoint titration
> Can also undertake manual titration and routine liquid transfer tasks
> With wireless electrode recognition function, can be connected to TitriSoft 3.3 titration software
> Different electrodes can be selected, which can basically meet all daily titration applications, and have special applications in the following aspects:
Special application 1. Perfect non-aqueous titration function: non-aqueous titration test includes acid value and alkali value in oil; titration of glacial acetic acid and perchloric acid solution; hydroxyl, isocyanate value, sulfide in oil and Determination of mercaptans, titration of property values, etc.
Special application 2. Constant pH titration function to determine enzyme activity; soil titration at pH=4; pH value monitoring in chemical reactions, etc.
Special application 3. Two equivalence point measurement requirements: can detect and calculate two equivalence points in the same test (for example, calcium and magnesium hardness can be detected separately
degree, various acid concentration in mixed acid)
> Other routine titration applications
Flexible and complete supporting equipment
> 2×USB-A (host), 1×USB-B (connect to PC) interface;
> 2×RS232 interface;
> The following supporting equipment can be connected:
- USB controlled mouse
- USB printer (HP-PCL and Seiko DPU S445 thermal printer)
- USB keyboard
- U-disk, store text as PDF and CSV
- Scales, computers, magnetic stirrers and other related equipment

Technical Parameters
model TL7000
show 3.5-inch-1/4VGA TFT high-definition display screen, which can display the titration curve in real time
control touch screen/keyboard/mouse
Measurement methods 50 types
App types Manual titration, precision pipetting, solution configuration, automatic potentiometric titration, pH endpoint titration, dynamic and linear titration, permanent stop titration, non-aqueous and constant pH titration
pH/mV electrode interface DIN 19262 or BNC
Permanent stop titration interface Double platinum electrode interface, the interface specification is 2×4mm
Temperature electrode interface Pt 1000
Measuring range -3.0…18.00pH, -2000…+2000mV, 0-100µA, -75…+150℃
resolution 0.001pH, 0.1mV, 0.1µA, 0.1°C
precision 0.002±1 Digit (pH), 0.10±1 Digit (mV), 0.2±1 Digit (µA), 0.2K±1 Digit (℃ )
Burette model 5/10/20/50ml optional
Dispensing piston precision 20000 steps
printer Connectable (USB-A)
balance Connectable (RS-232-2)
Continuous titration unit Can be connected to TW to realize continuous testing of multiple samples
Wireless electrode identification function After connecting the ID electrode, wireless electrode identification is possible
Titration software Can be connected to TitriSoft 3.3 software
