ChemTron
ChemTron STM High temperature heating sleeve (up to 650℃)
ChemTron STM High temperature heating sleeve (up to 650℃)
无法加载取货服务可用情况
*Please Contact Us for the Best Quote and to Confirm Delivery Time

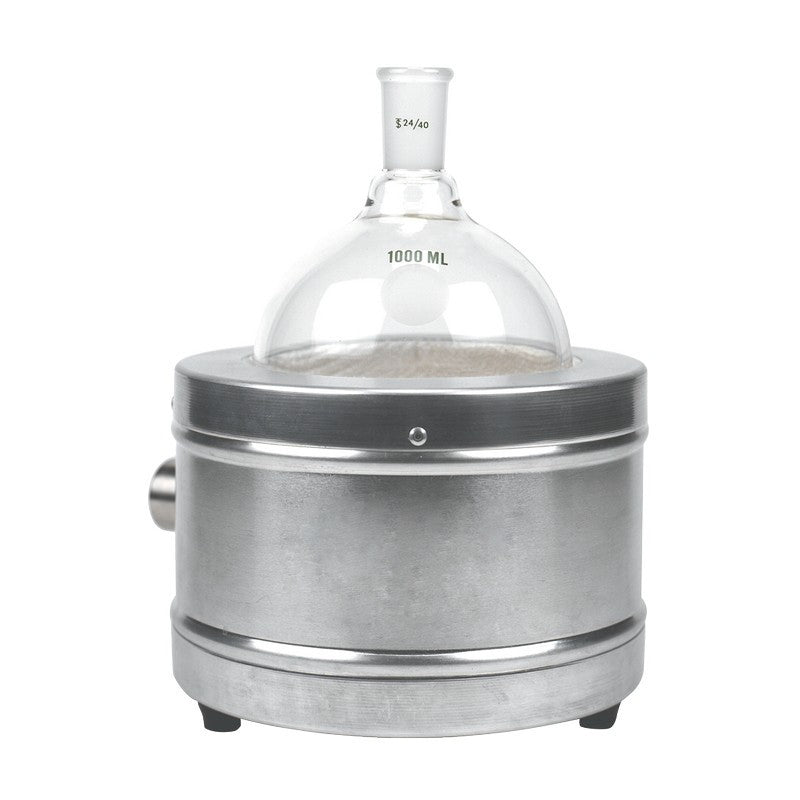

High temperature heating sleeve (up to 650℃)
Suitable for flask volume 100-22000ML
High temperature heating sleeve (up to 650℃)
> The high temperature heating sleeve can raise the maximum temperature to 650℃, which is used to meet the requirements of high temperature heating.
> Foot pads are designed at the bottom to ensure that the temperature of the table is not too high, both models also have good sealing and provide air intakes for use cooling.
> All models come standard with 1.2m long 3-wire wire and locking plug. Junction boxes are provided for STM1401 and STM1501.
> Customers can choose the upper half of the bottle mouth heating sleeve anti-splash ring and integral protective sleeve and other accessories.
Technical parameter
|
Order Code |
Applicable flask volume |
Maximum applicable flask diameter |
Power |
Internal depth |
External diameter |
External height |
Weight |
|
|
ml |
mm |
W |
mm |
mm |
mm |
kg |
|
STM401 |
100 |
60 |
230 |
30 |
159 |
121 |
1.0 |
|
STM501 |
125 |
70 |
230 |
35 |
159 |
121 |
1.0 |
|
STM601 |
200 |
76 |
300 |
38 |
159 |
121 |
1.1 |
|
STM701 |
250 |
83 |
470 |
41 |
159 |
121 |
1.2 |
|
STM801 |
300 |
86 |
470 |
43 |
159 |
121 |
1.2 |
|
STM901 |
500 |
101 |
470 |
51 |
159 |
127 |
1.3 |
|
STM1001 |
1000 |
130 |
600 |
68 |
191 |
127 |
1.5 |
|
STM1101 |
2000 |
170 |
870 |
86 |
254 |
152 |
2.0 |
|
STM1201 |
3000 |
183 |
970 |
92 |
254 |
152 |
2.4 |
|
STM1301 |
5000 |
220 |
2@700 |
109 |
305 |
178 |
3.6 |
|
STM1401 |
12000 |
293 |
2@1000 |
147 |
419 |
254 |
8.6 |
|
STM1501 |
22000 |
347 |
3@1000 |
173 |
483 |
254 |
11.1 |
