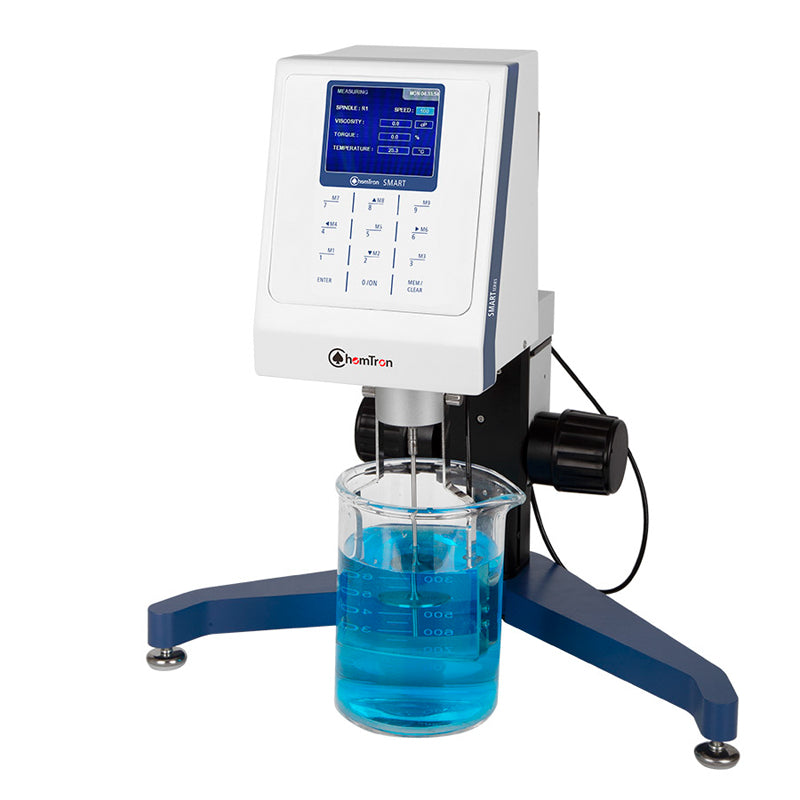

ChemTron Smart L/Smart R Smartseries Rotational viscometers

Professional and Accurate viscosity results. Customize your measurement. 2 YEARS WARRANTY

Program features

> Time to torque

> Time to stop

> 10 working memories

> Customizable option (Speeds)

> Programmable: Multistep/Ramp

> Unit Converter (IS or CGS)

USB Interface

Faster transfer data to the computer

AUTO-TEST

It checks the internal function in order to make the unit ready to use

Viscosity Readings

> Absolute viscosity (cP or mPa·s)

> Apparent viscosity (cP or mPa·s)

> Kinematic viscosity (cSt, mm2/sec)

> (Density introduced by the user)

10 working memories

Set up the unit and get it ready to be used every day choosing the memory you need

Data Displayed

> Selected Speed

> Selected Spindle

> Viscosity readings (cP or mPa·s or cSt)

> Percentage of Full Scale Range (%)

> Sample Temperature (℃ or ℉ )

> Shear rate (with coaxial spindles) (s-1)

> Shear Stress (with coaxial spindles) (N/m2 )

> Density (introduced by the user) (g/cm3)

Universal adapter

All accessories such as Brookfield (Optional)

Datalogger Software included

USB allows data transfer to a Excel format

Main Feature

Standard Delivery

Viscometer head with serial number / Stand, 3 levelling adjustment for stand / Boss head / Standard spindles / Spindle protector / Spindle rack / PT100 probe / Power supply cable / Datalogger software in CD / USB cable / Carrying case / Calibration Certificate / Operating manual

NOTE: All parts (including the viscometer stand) find room in the Carrying case

Extra Accessories

APM (Small Sample Adapter) / LCP (Low Viscosity Adapters) / Heldal unit (High Viscosity Adapter) / Silicon Standard Oils / Thermostatic Bath / Universal adapter for all accesories such as Brookfield (Optional) / PPR Plugging System (Optional) NOTE: The material of the accessories including the temperature probe can be changed under customer specification (High Temperature Resistance).

Data displayed:

> Selected speed r.p.m.

> Selected spindle SP

> Viscosity reading cP (mPa·s) or cSt

> Percentage of full scale %

> Sample temperature ℃ or ℉

> Shear Rate (with coaxial spindles) SR (s-1)

> Shear Stress (with coaxial spindles) SS (N/m2)

> Density (introduced by the user) g/cm3

Step Program Status

Viscosity reading: dynamic viscosity (cP or mPa·s) or kinematics viscosity (cSt)

AUTO-TEST with sound and visual malfunction alarm. AUTO-RANGE function. Temperature reading by PT100. User-enabled viscosity and temperature calibration. 10 language options.

Technical File > Precision: ± 1% of full scale

Resolution: > With low viscosity adapter: 0.01 > For lower than 10.000 viscosity cP: 0.1 > For viscosity equal to or above 10.000 cP: 1 Repeatability:

0.2% Thermometer features:

Temperature margins:

> 0℃ to +100℃ (32 ℉ to 212.0 ℉ ) > Resolution: 0.1℃ / 0.1722 ℉ > Precision: +/- 0.1 ℃ > Type of probe: PT100

Supplied at 100-240 VAC, 50/60 Hz

Software: DATA BOSS

The Data Boss software complies the FDA 21CFR PART 11 regulatio

Spindles AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.

These are the standards our units follow:

> BS: 6075, 5350

> ISO: 2555, 1652

> ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

Order information

model	Smart L	Smart R
order number	1001611	1001612
Range	20~2.000.000cP	100 ~13.000.000 cP
Standard number of rotors	L1,L2,L3,L4	R2,R3,R4,R5,R6,R7
range of rotation	0.3~100rpm
number of revolutions	18 types
Viscosity Measurement Accuracy	±1%×full scale, accessories will affect the temperature
Viscosity display resolution	0.01~1cP
Viscosity repeatability	±2%×full scale
temperature	-40°C ~ +300.0°C
Data Display	Speed, rotor number, viscosity measurement result, range percentage, sample temperature (the thermometer needs to be ordered separately), shear stress and shear rate (the coaxial rotor needs to be selected), density (input)
application	Measuring sample dynamic viscosity / kinematic viscosity
unit system	cP(mPa-s) or cSt
Self-test function	Power-on self-test, range self-test
calibration	Users can perform viscosity calibration and temperature calibration by themselves
language	7 languages available (including Chinese)
Voltage	100-240 V - 50/60 Hz.
Call the police	Over range alarm
communication interface	USB
Work program	TTT, TTS, 9 ways to edit
temperature display	Standard temperature sensor
data transmission	U disk can be connected to export data
Standard configuration	Viscosity host, PT100 temperature sensor, level adjustable bracket, standard rotor, rotor protection bracket, rotor placement bracket, power cord, calibration certificate, operation manual, hard packing case.
Optional accessories	APM Small Sample Adapter, LCP Ultra Low Viscosity Adapter, Heldal High Viscosity Adapter, Standard Viscosity Oil, Viscosity Thermostat
