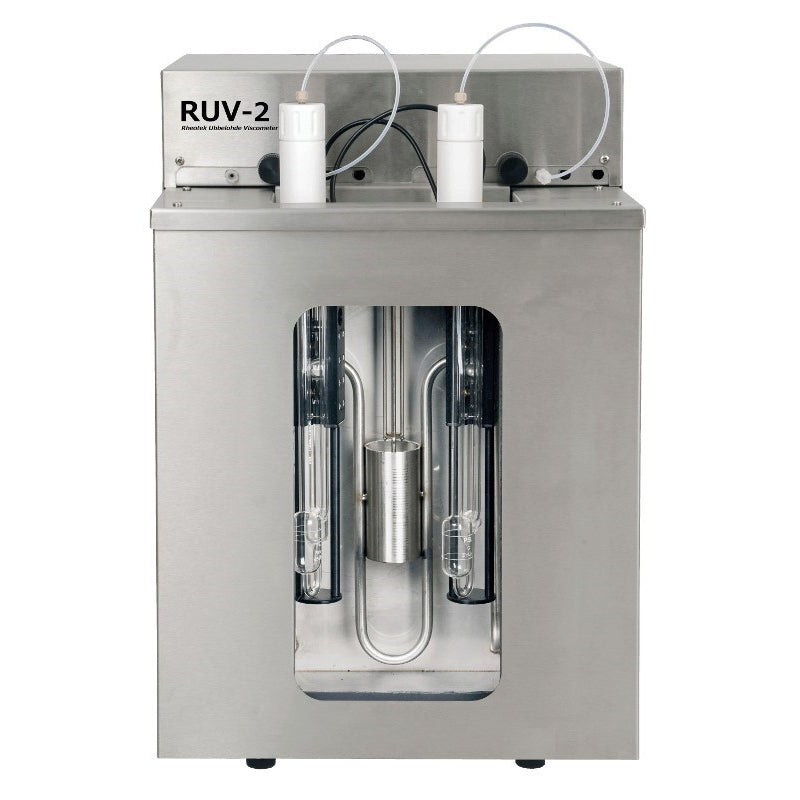

ChemTron RUV-2 (Gen 2) Oil Viscosity Automatic Measurement System

Please Contact Us for the Best Quote and to Confirm Delivery Time

RUV-2 (Gen 2) Oil Viscosity Automatic Measurement System

RUV-2 Automatic determination of kinematic viscosity using a calibrated Ubbelohde glass capillary viscometer

RUV-2 (Gen 2) Oil Viscosity Automatic Measurement System

The RUV-2 automatically determines kinematic viscosity using a calibrated Ubbelohde glass capillary viscometer.

application

> Distillate fuel, diesel at 40°C

> Biofuel, 40°C

> Base oil, 40℃ or 100℃

> Formula oil, 40°C or 100°C

> Residual fuel e.g. bunker fuel at 50, 80 or 100°C

> Other transparent or opaque liquids

RUV-2 Features

> Follow ASTM D445 or ISO 3104 method every step of the way

> Exceeds the temperature stability requirements of ASTM D445 or ISO 3104

> Meniscus detection using independent NIR sensor -- timing independently verifiable

> Equipped with two-stage solvent cleaning and drying (with vacuum pump inside)

> Simple to use with on-board processor and software operation

> For ASTM type Ubbelohde viscosity tubes (with ISO 17025 calibration certificate)

> Equipped with (optional) separate temperature probe (with ISO 17025 calibration certificate)

RUV-2 configuration

> The RUV-2 analyzer integrates the following modules:

> Viscosity bath and LED backlight

> Near Infrared Photoelectric Sensor

> PC processor (no external PC required)

> Pressure pump for sample lift in glass viscometer

> Vacuum drying pump

> Onboard PC Processor

Technical Parameters

ordering information
