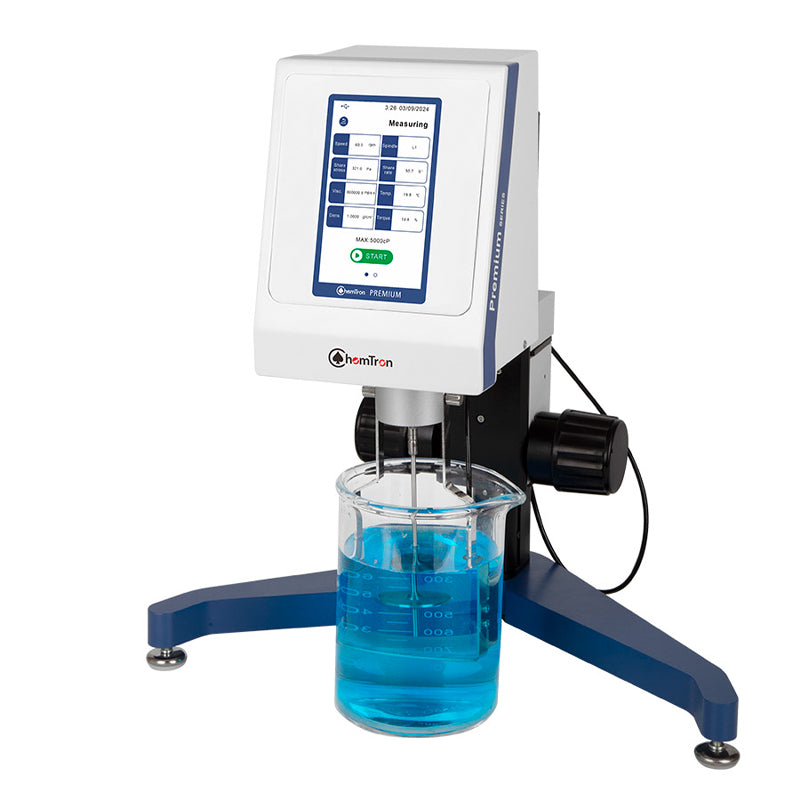

ChemTron Premium L/Premium R/Premium H PREMIUM Rotational viscometers
ChemTron Premium L/Premium R/Premium H PREMIUM Rotational viscometers
无法加载取货服务可用情况
Please Contact Us for the Best Quote and to Confirm Delivery Time
Description
> Friendly interface, color TFT screen
> Interface bluetooth
> USB connection, can access PC computer software for remote control, data recording and storage, curve drawing, etc.
> Bluetooth connection, can quickly form data table
The data display includes
> Rotor speed r.p.m. (2600 speed optional, 0.01~250rpm)
v Rotor number SP
> Viscosity measurement value cP (mPa·s) or cSt
> Range percentage %
> Sample temperature is ºC or ºF
> Shear rate (if coaxial rotor has been selected) SR (s-1)
> Shear stress (if coaxial rotor has been selected) SS (N/m2)
> Density g/cm3
Product characteristics
> AUTO-TEST sound and display alarm
>AUTO-RANGE function.
> Temperature display
> Temperature and viscosity calibration function
> 7 operating languages (including Chinese)
> Communication interface: USB-A
>Statistics, you can view the data in the graph
Viscosity measurement
>Viscosity reading value: dynamic viscosity (cP or mPa·s)
>Kinetic viscosity (cSt).
>Viscosity unit SI to CGS.
Measuring program
> TTT / TTS
> Program mode: Continuous multi-step viscosity test
> Slope mode: Initial speed and end speed within a specified time
>Can store 9 working programs
Standard configuration
What's included: L type standard with 4 rotors, R and H type standard with 6 rotors, viscometer support, rotor protection support,
Temperature sensor, hard packing case, USB data cable and power cable
Rotor and follow standard
> It is made of 316 stainless steel, and the rotor number is silkscreen printed on the rotor
> BS: 6075, 5350
> ISO: 2555, 1652
> ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393,2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716
Technical information
| model | Premium L | Premium R | Premium H |
| order number | 1001647 | 1001648 | 1001649 |
| Range | 10~6,000,000cP | 25~40,000,000cP | 200~320,000,000cP |
| Standard number of rotors | L1,L2,L3,L4 | R2,R3,R4,R5,R6,R7 | R2,R3,R4,R5,R6,R7 |
| range of rotation | 0.01~250rpm | ||
| number of revolutions | 2600 species | ||
| Viscosity Measurement Accuracy | ±1%×full scale, accessories will affect the temperature | ||
| Viscosity display resolution | 0.01~1000cP | ||
| Viscosity repeatability | ±2%×full scale | ||
| temperature | -40°C ~ +300.0°C | ||
| Data Display | Speed, rotor number, viscosity measurement result, range percentage, sample temperature, shear stress and shear rate (coaxial rotor required), density (input) | ||
| application | Measuring sample dynamic viscosity / kinematic viscosity | ||
| unit system | cP(mPa-s) or cSt | ||
| Self-test function | Power-on self-test, range self-test | ||
| calibration | Users can perform viscosity calibration and temperature calibration by themselves | ||
| language | 7 languages available (including Chinese) | ||
| Voltage | 100-240 V - 50/60 Hz. | ||
| Call the police | Over range alarm | ||
| communication interface | USB | ||
| Work program | TTT, TTS, 9 method editing, program mode measurement, slope mode measurement | ||
| temperature display | Standard temperature sensor | ||
| data transmission | Standard Databoss software | ||
| Standard configuration | Viscosity master, PT100 temperature sensor, leveling stand, standard spindle, spindle protection stand, spindle placement stand, power cord, calibration certificate, operating instructions, Databoss software, USB cable and hard case. | ||
| Optional accessories | APM Small Sample Adapter, LCP Ultra Low Viscosity Adapter, Heldal High Viscosity Adapter, Standard Viscosity Oil, Viscosity Thermostat | ||
