ChemTron Peripheral modules for reaction system Motor-Driven Metering Pump (* Please Contact Us for the Best Quote and to Confirm Delivery Time.)
ChemTron Peripheral modules for reaction system Motor-Driven Metering Pump (* Please Contact Us for the Best Quote and to Confirm Delivery Time.)
无法加载取货服务可用情况

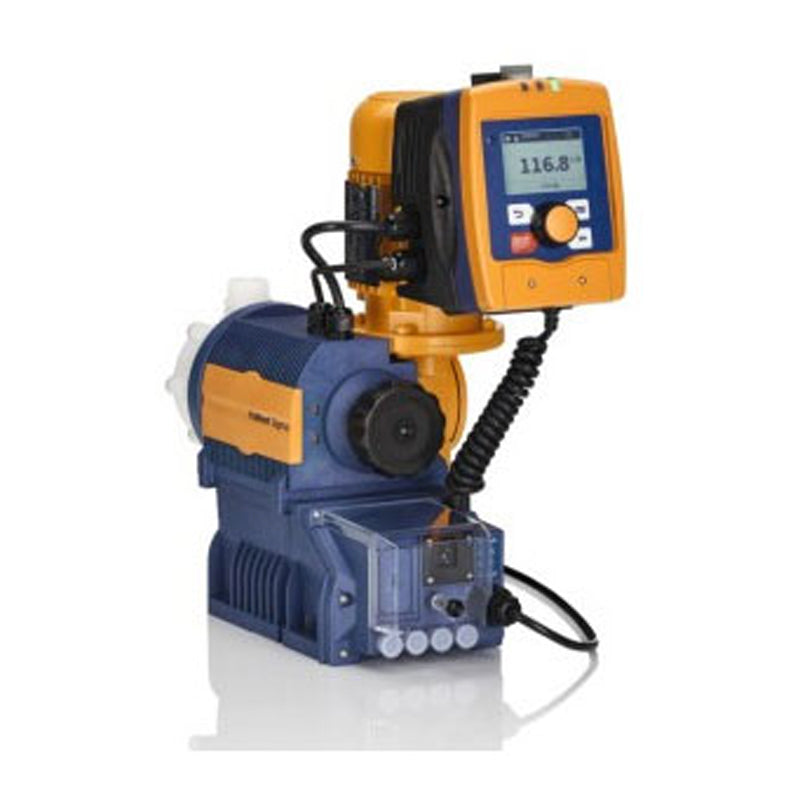

Motor-Driven Metering Pump
Delivery rate at max. back pressure: 12bar, 117 l/h, 9.7ml/stroke
Description
Your benefits
* Safe: In the event of an accident, the feed chemical does not escape to the outside nor into the pump's Power end, thanks to the patented multi-layer safety diaphragm with optical (optionally electric) signalling.
* Integrated overload shut-down in the pump control to protect the pump from overloading and thus significantly reduce pressure surges caused by blockages.
* External control is scalable via potential-free contacts with pulse step-up and step-down, batch mode or via a 0/4-20 mA standard signal.
* Flexibly connectible: Connection to process management systems via integral PROFIBUS®, CANopen interface.
* Integral log book saves up to 300 events and simplifies troubleshooting and analysis of the cause.
|
Type S1Cb |
Delivery rate at max. back pressure |
Max. stroke rate Delivery rate at max. back pressure |
Suctio lift |
Perm. pre-pressure suction side |
Connection, suction/discharge side |
||||
|
|
bar |
l/h |
ml/stroke |
Strokes/min |
psi |
gph (US) |
m WC |
bar |
G–DN |
|
12017 PVT |
10 |
21 |
3.8 |
90 |
145 |
5.5 |
7 |
1 |
3/4–10 |
|
12017 SST |
12 |
21 |
3.8 |
90 |
174 |
5.5 |
7 |
1 |
3/4–10 |
|
12035 PVT |
10 |
42 |
4.0 |
170 |
145 |
11.1 |
7 |
1 |
3/4–10 |
|
12035 SST |
12 |
42 |
4.0 |
170 |
174 |
11.1 |
7 |
1 |
3/4–10 |
|
10050 PVT |
10 |
49 |
4.0 |
200 |
145 |
12.9 |
7 |
1 |
3/4–10 |
|
10050 SST |
10 |
49 |
4.0 |
200 |
145 |
12.9 |
7 |
1 |
3/4–10 |
|
10022 PVT |
10 |
27 |
5.0 |
90 |
145 |
7.1 |
6 |
1 |
3/4–10 |
|
10022 SST |
10 |
27 |
5.0 |
90 |
145 |
7.1 |
6 |
1 |
3/4–10 |
|
10044 PVT |
10 |
53 |
5.1 |
170 |
145 |
14.0 |
6 |
1 |
3/4–10 |
|
10044 SST |
10 |
53 |
5.1 |
170 |
145 |
14.0 |
6 |
1 |
3/4–10 |
|
07065 PVT |
7 |
63 |
5.2 |
200 |
102 |
16.6 |
6 |
1 |
3/4–10 |
|
07065 SST |
7 |
63 |
5.2 |
200 |
102 |
16.6 |
6 |
1 |
3/4–10 |
|
07042 PVT |
7 |
52 |
9.5 |
90 |
102 |
13.7 |
3 |
1 |
1–15 |
|
07042 SST |
7 |
52 |
9.5 |
90 |
102 |
13.7 |
3 |
1 |
1–15 |
|
04084 SST |
4 |
101 |
9.7 |
170 |
58 |
26.7 |
3 |
1 |
1–15 |
|
04084 PVT |
4 |
101 |
9.7 |
170 |
58 |
26.7 |
3 |
1 |
1–15 |
|
04120 PVT |
4 |
117 |
9.7 |
200 |
58 |
30.9 |
3 |
1 |
1–15 |
|
04120 SST |
4 |
117 |
9.7 |
200 |
58 |
30.9 |
3 |
1 |
1–15 |
