ChemTron

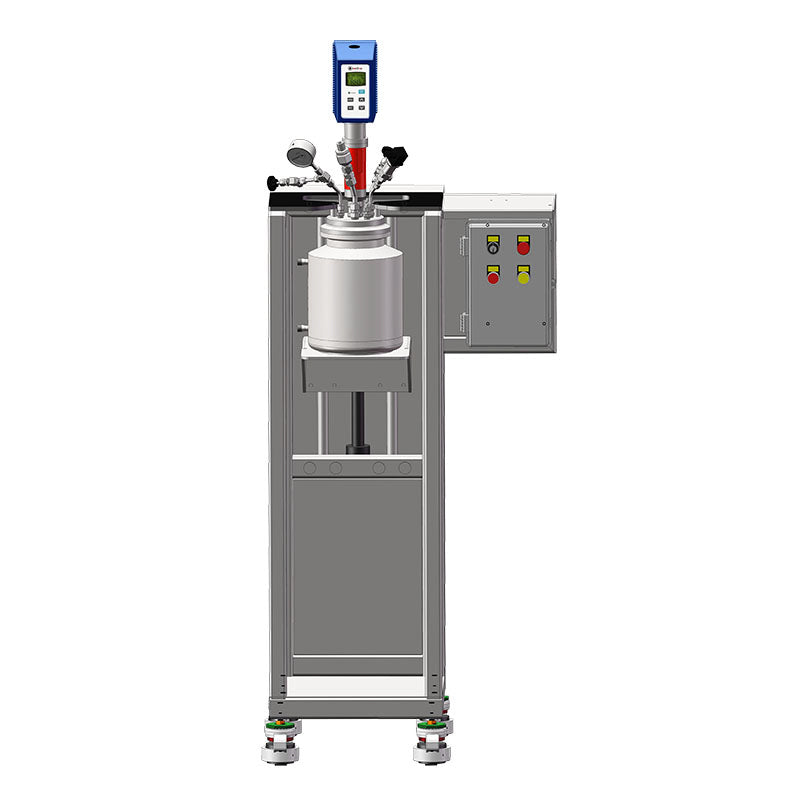

ChemTron NR-series Reactors S.S. Low Pressure Reactor / Floor Stand NR-5L
ChemTron NR-series Reactors S.S. Low Pressure Reactor / Floor Stand NR-5L
常规价格
$999,999.00 USD
常规价格
促销价
$999,999.00 USD
单价
/
单价
无法加载取货服务可用情况
* Please contact us for the best quote and to confirm delivery time.
S.S. Low Pressure Reactor / Floor Stand NR-5L
Temperature max: 300℃;Pressure max: 25 bar
Description
S.S. Low Pressure Reactor / Floor Stand
( Up to 25bar)
The NR-5L/10L low-pressure reactor is notable for its ease of handling. The reactor is closed using a manual quick closure that can be attached without the use of tools. The reactor seal is established using a conical flange lock and O-ring seal of PTFE, FKM, or FFKM. The appropriate fitting inserts are available in stainless steel or Hastelloy. A total of 8 connection options are provided in the lid, which can be selected from the following:
> Gas sampling
> Rupture disc of metal for the safe limitation of maximum pressure
> Pressure display
> Vent valve
> Dip-tube liquid sampling
> Thermocouple with dip-tube
> Exhaust hose
> More connection options on request
Temperature is regulated using a temperature probe which detects the inner temperature of the reactor in an immersion tube. A second temperature probe can optionally be used as an independent overheating safety. Electric lifting floor stand systems are available.
Features
> 5L or 10L / 25 bar / 300℃ ( PTFE-Lined 230° )
> With bottom drain valve
> Quick closure chain, to be operated manually without tools
> O-seal ring made of Viton® , PTFE or Kalrez®
> Heating by electrical or thermostated mantle
> Stirring by magnetic or mechanical clutch and separate drive
> Optionally internal heating/cooling coil
Technical Specification
|
|
NR-5L |
|
|
Material |
Stainless Steel or Hastelloy |
|
|
Temperature max. |
300℃ |
|
|
Pressure max. |
25 bar |
|
|
Reactor Vessel |
Volumen |
approx. 5000 ml |
|
Innendurchmesser |
207 mm |
|
|
Innenhöhe |
234mm |
|
|
Gewicht |
approx. 16,4 kg |
|
|
Bodenablassventil |
√ |
|
|
TFMTM-PTFE Insert |
optional |
|
|
Armatures |
Standard Armatures |
Rupture Disc, Dip Tube, Valve, |
|
Pressure Measurement |
Pressure gauge or Pressure sensor
|
|
|
Ports (total) |
8 |
|
|
Ports (free) |
4 |
|
|
Type of connection |
8 mm Tube Connection |
|
|
Heating Systems(optional) |
Stangard |
Heating mantle
|
|
Optional |
Heating jacket connected with thermostat / heating coils optional
|
|
|
Stirring |
RV-100 |
WB18D and RV 100-SS |
|
RV-400 |
WB18D and RV 400-SS |
|
|
Stand |
Electric lifting floor stand
|
|
