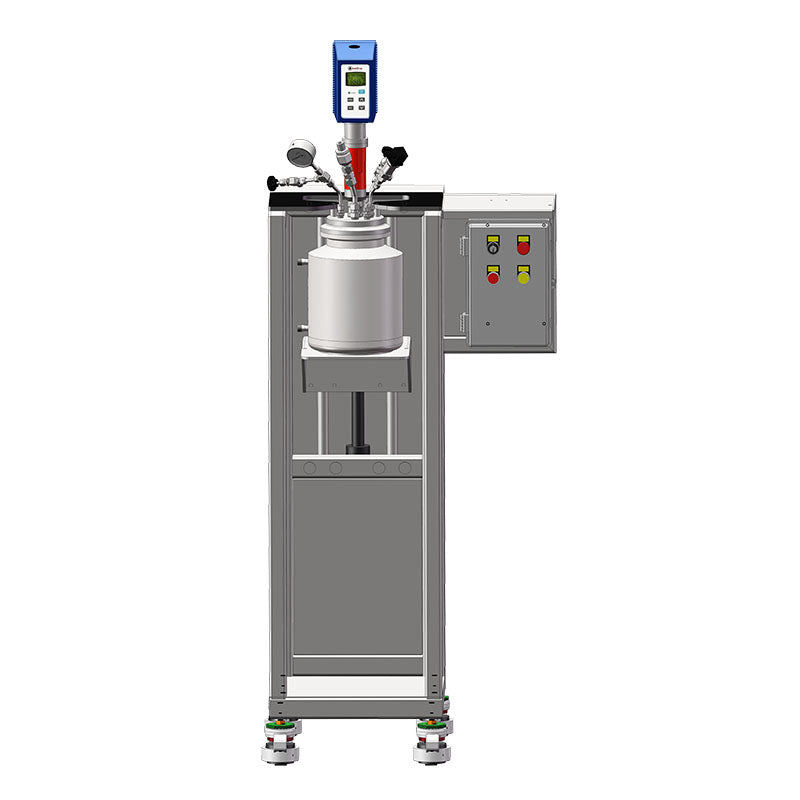

ChemTron NR-series Reactors S.S. Low Pressure Reactor / Floor Stand NR-10L

* Please contact us for the best quote and to confirm delivery time.

S.S. Low Pressure Reactor / Floor Stand NR-10L

Temperature max: 300℃;Pressure max: 25 bar

Description

S.S. Low Pressure Reactor / Floor Stand

( Up to 25bar)

The NR-5L/10L low-pressure reactor is notable for its ease of handling. The reactor is closed using a manual quick closure that can be attached without the use of tools. The reactor seal is established using a conical flange lock and O-ring seal of PTFE, FKM, or FFKM. The appropriate fitting inserts are available in stainless steel or Hastelloy. A total of 8 connection options are provided in the lid, which can be selected from the following:

> Gas sampling

> Rupture disc of metal for the safe limitation of maximum pressure

> Pressure display

> Vent valve

> Dip-tube liquid sampling

> Thermocouple with dip-tube

> Exhaust hose

> More connection options on request

Temperature is regulated using a temperature probe which detects the inner temperature of the reactor in an immersion tube. A second temperature probe can optionally be used as an independent overheating safety. Electric lifting floor stand systems are available.

Features

> 5L or 10L / 25 bar / 300℃ ( PTFE-Lined 230° )

> With bottom drain valve

> Quick closure chain, to be operated manually without tools

> O-seal ring made of Viton® , PTFE or Kalrez®

> Heating by electrical or thermostated mantle

> Stirring by magnetic or mechanical clutch and separate drive

> Optionally internal heating/cooling coil
