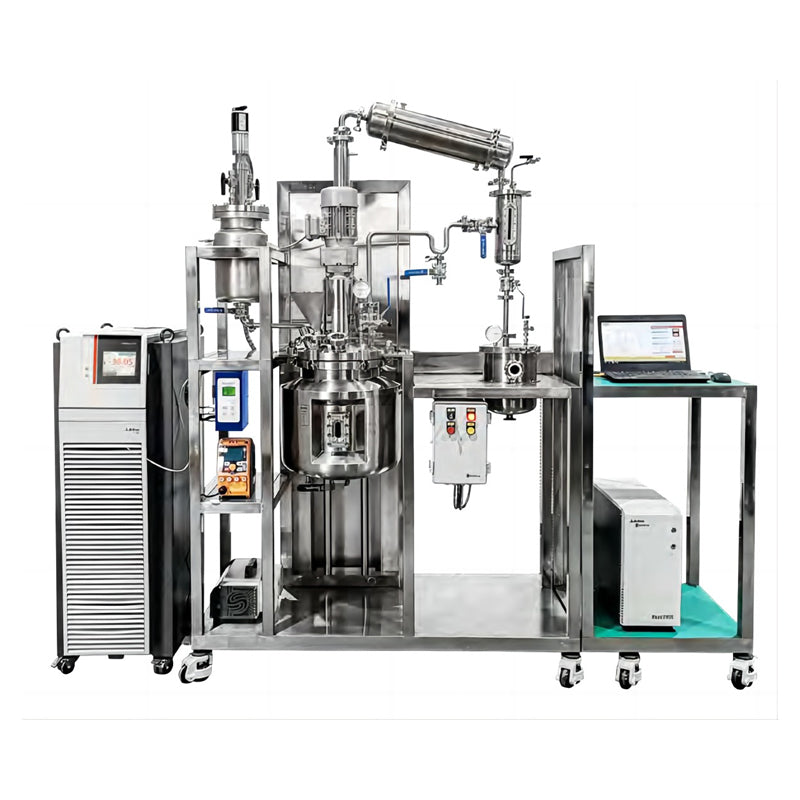

ChemTron NR-series Reactors S.S. Low Pressure Reaction System NR-50L Stainless Steel Reactor

* Please contact us for the best quote and to confirm delivery time.

S.S. Low Pressure Reaction System NR-50L

Temperature max: 250℃;Pressure max: 25bar;

Description

S.S. Low Pressure Reaction System

( Up to 25bar)

This low-pressure reactor is ideally suitable for process experimental runs. This low-pressure reactor is available in stainless steel. The usable volume of the reactor can be 20L, 30L and 50L using different reactor vessels.

The NR-20L/30L/50L low-pressure reactor is notable for its ease of handling. The reactor is closed using the clamp bolts for lid. The reactor seal is established using a conical flange lock and O-ring seal of PTFE, FKM, or FFKM. A total of 8 connection options are provided in the lid, which can be selected from the following:

> Gas sampling

> Rupture disc of metal for the safe limitation of maximum pressure

> Pressure display

> Vent valve

> Dip-tube liquid sampling

> Thermocouple with dip-tube

> Exhaust hose

Temperature is regulated using a temperature probe which detects the inner temperature of the reactor in an immersion tube. A second temperature probe can optionally be used as an independent overheating safety. Appropriate stand systems are available.

 Features

> 20L,30L or 50L / 20 bar / 250℃

> With bottom drain valve

> With clamp bolts for the lid.

> O-seal ring made of Viton® , PTFE or Kalrez®

> Temperature controlled by heating and cooling circulators from JULABO

> Stirring by magnetic clutch or mechanical and separate drive
