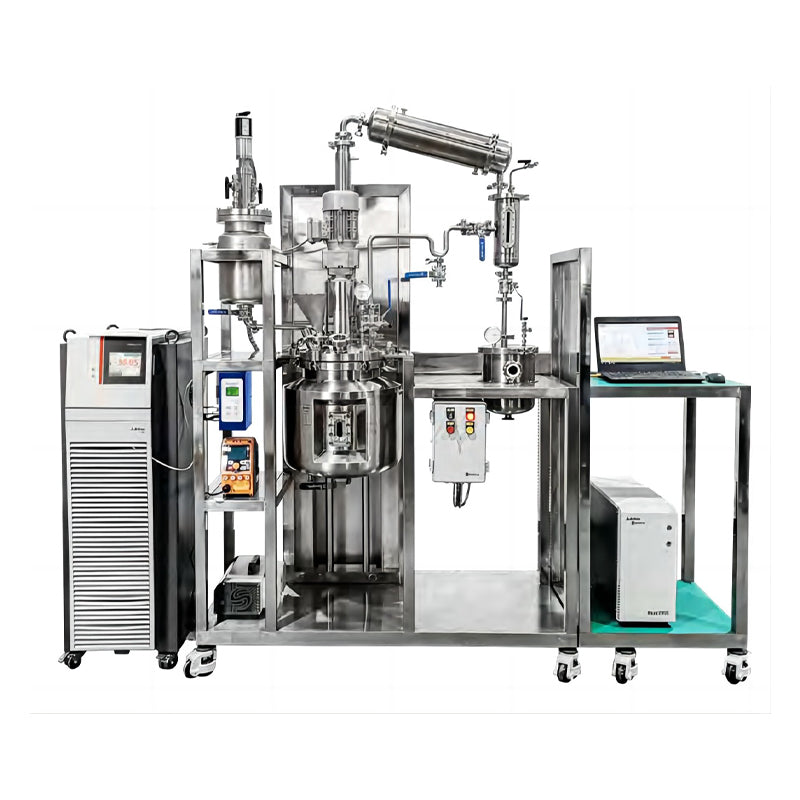

ChemTron NR-series Reactors S.S. Low Pressure Reaction System NR-20L Stainless Steel Reactor

ChemTron NR-series Reactors S.S. Low Pressure Reaction System NR-20L Stainless Steel Reactor

$999,999.00 USD
$999,999.00 USD
促销 售罄

* Please contact us for the best quote and to confirm delivery time.

S.S. Low Pressure Reaction System NR-20L

Temperature max: 250℃;Pressure max: 25bar

Description

S.S. Low Pressure Reaction System

( Up to 25bar)

This low-pressure reactor is ideally suitable for process experimental runs. This low-pressure reactor is available in stainless steel. The usable volume of the reactor can be 20L, 30L and 50L using different reactor vessels.

The NR-20L/30L/50L low-pressure reactor is notable for its ease of handling. The reactor is closed using the clamp bolts for lid. The reactor seal is established using a conical flange lock and O-ring seal of PTFE, FKM, or FFKM. A total of 8 connection options are provided in the lid, which can be selected from the following:
> Gas sampling
> Rupture disc of metal for the safe limitation of maximum pressure
> Pressure display
> Vent valve
> Dip-tube liquid sampling
> Thermocouple with dip-tube
> Exhaust hose

Temperature is regulated using a temperature probe which detects the inner temperature of the reactor in an immersion tube. A second temperature probe can optionally be used as an independent overheating safety. Appropriate stand systems are available.
 Features
> 20L,30L or 50L / 20 bar / 250℃
> With bottom drain valve
> With clamp bolts for the lid.
> O-seal ring made of Viton® , PTFE or Kalrez®
> Temperature controlled by heating and cooling circulators from JULABO
> Stirring by magnetic clutch or mechanical and separate drive

Technical Specification



NR-20L

Material

Stainless Steel

Temperature max.

250℃

Pressure max.

25bar

Reactor vessel

Volume

20L

Inner diameter

309mm

Inner height

425mm

Bottom drain valve

√

With jacket

√

Max. pressure on jacket

3bar

Volume of jacket

≈5.3L

Seal ring

Viton

√

Armatures

Standard armatures
Rupture disc, Vent valve

Pressure measurement
Pressure gauge or Pressure sensor

Nozzles (total)

8

Type of connection
1/4”NPT、1/2”NPT、1”NPT、1”/1.5”Heavy duty ferrule connection

Heating Systems
Thermostat jacket

√

Strring (Magnetic clutch)

RV-400

√
Frame
Type

 Electric lifting S.S. frame. individually designed for various applications
