ChemTron Lab Gas Generator NM plus series hydrogen generator NMH2- 400Plus(Please Contact Us for the Best Quote and to Confirm Delivery Time)

Please Contact Us for the Best Quote and to Confirm Delivery Time

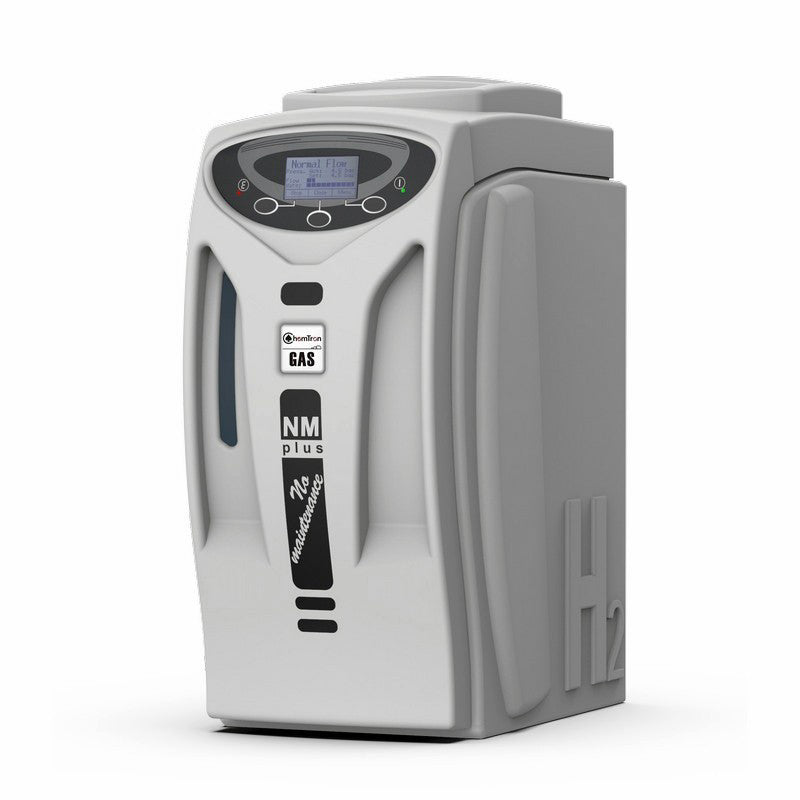

NM PLUS 400 Hydrogen Generator

Flow rate 250 ml/min, Purity 99.99996%

Description

NM PLUS 400 HYDROGEN GENERATOR

DESCRIPTION

The Chemtron Gas NM Plus hydrogen generator offers the optimum combination of safe operation, reliability and performance. Designed as a hazard free alternative to high-pressure cylinders, all that is required is deionized water and a standard electrical supply for weeks of continuous operation.

Utilizing our proprietary Proton Exchange Membrane (PEM) inside a 100% titanium cell provides superior generator performance and cell longevity. The permeation membrane drying system eliminates the requirement for desiccant cartridges along with the associated downtime and cost. The final purification stage uses a no maintenance cold dual dynamic regeneration system which increases the purity to +99.99996%. Innovative software control allows unrivaled operational performance and safety as well as the additional options of auto water feed, remote networking and cascading for built in redundancy.

With a maximum output capacity of 1350 mL/min, one generator can supply up to 33 GCs. The compact design allows the generator to be installed directly in the laboratory eliminating the requirement for long gas lines and guaranteeing the delivery of high purity gas to your instruments.

A sophisticated control system connected to an easy to use touch screen control continuously monitors vital operating parameters to ensure a safe and consistent performance. Built in sensors will shut the generator down if internal/external leaks are present, contaminated water, low water or over pressure. This is why Chemtron Gas generator meet the strict safety guidelines to be certified for CE, FCC and MET (CSA and UL compliant).

INCREASE EFFICIENCY

A constant gas supply with a guaranteed purity, eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibration required.

IMPROVE SAFETY

Gas is produced on demand, which allows for the safe use of the hydrogen generator when cylinders are prohibited or regarded as potentially dangerous. Sophisticated software control and full alarm capability, including for hydrogen leaks, gives the user full control of the gas supply.

ENHANCE RESULTS

Hydrogen as a carrier gas is faster and more sensitive than expensive helium, with run time savings of 25% to 35% without a decline in resolution. The use of hydrogenas a carrier gas allows lower temperature elution, thus extending the life of thechromatograph column.

ENHANCE PERFORMANCE

Gas generator can be installed in the laboratory close to the instrument, eliminating the need for long gas lines from external cylinder supplies. A constant guaranteed high purity gas supply improves stability and ensures greater reproducibility of results.

FEATURES

Produces a continuous supply of H2 | On-demand supply 24/7 | Flow rate: 100 to 1350 mL/min | Purity: +99.99996% | Pressure: 11 barg (160 psig) | Proprietary 100% titanium cell technology | Unique permeation membrane drying system | Cold dual dynamic regeneration dryer | USB connectivity | 2-year complete cell and product warranty | Easy to install, operate and maintain.

BENEFITS

Eliminates dangerous high pressure cylinders helping to keep your employees safer | Removes the logistics, inconvenience, downtime and costs of a cylinder system | Flow capacity and purity to match your specific instrument demands | Ideal for all GC detector applications | Meet and exceeds the requirements for the most demanding GC applications | Superior hydrogen production with reliable long life cell | Minimal maintenance - low cost of ownership | PC monitoring for maintenance, diagnostics and remote connection | Peace of mind | Improve your laboratory work flow and productivity.

OPTIONS

I/O board | Remote control software (RS232 or USB) | Cascading hardware (standard or high purity) | Automatic water refill.

APPLICATIONS

GC APPLICATIONS

> GC carrier gas

> GC/MS carrier gas

> GC fuel gas

> GC-ELCD & HALL reaction gas

ANALYZER APPLICATIONS

> Total Hydrocarbon Analyzer (THA) fuel gas

> Chemisorption/ Physisorption measurement gas

SPECTROSCOPY APPLICATIONS

> ICP-MS Collision cell reaction gas

OTHER LAB APPLICATIONS

> Chemical Vapor Deposition Instrumentation (CVD) aid deposition process > Plasma Cleaning Instrumentation (UCP)

> High Efficiency Process Gas

> Hydrogenation Reactors

> Hydrogen Fuel Cells

> Weather Balloon Filling

> Electronic Nose (eNOSE)

> 3-D Chromatography

Technical parameter
