Digital refractometers with automation

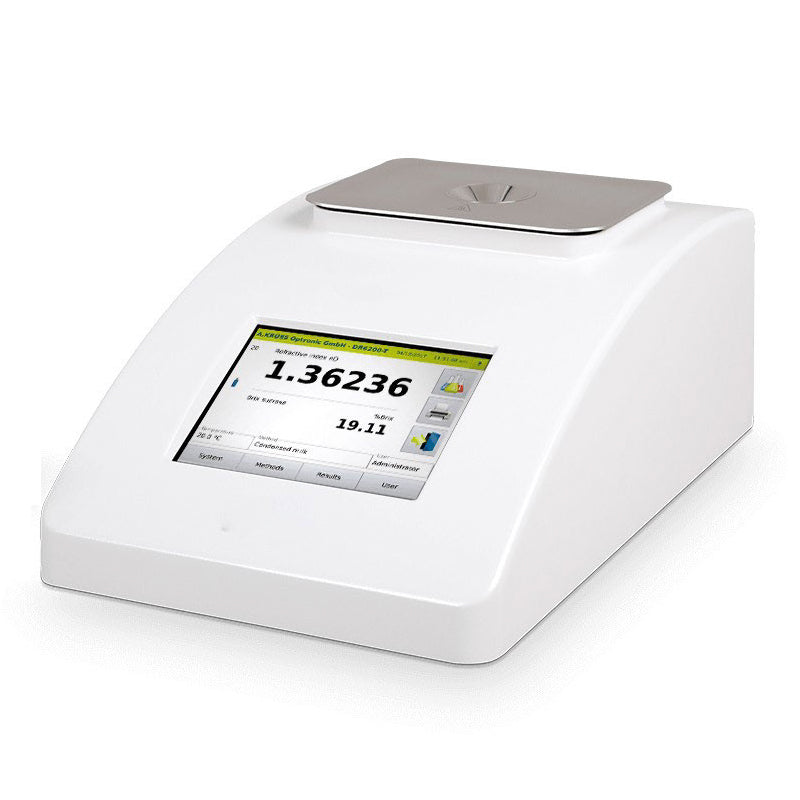

The DR6000-TF models with flow-through cell enable fully automatic operation in combination with drying unit, peristaltic pump and autosampler.

Digital refractometers with automation

The DR6000-TF models with flow-through cell enable fully automatic operation in combination with drying unit, peristaltic pump and autosampler. There are four model variants available for the different requirements for accuracy, resolution and measuring range, whereby the same operation and functionality can be accessed.

  • For continuous measurements or series of measurements with high sample volumes
  • For low-viscous to slightly viscous samples
  • With highly accurate internal Peltier temperature control
  • Preinstalled and freely definable scales with conversions based on tables or formulas
  • Chemical-resistant materials such as measurement prism made of sapphire, measuring tray made of stainless steel
  • Also chemical resistant materials for the tubing and flow-through cell
  • Control with and without external software possible
  • Intuitive operation via state-of-the-art touchscreen display
  • Complete data recording and backup including audit trail
  • Flexible data export and simple data import with parameter processing via XML interface also possible
  • Flexible and method depending cleaning procedures adjustable
  • Compliance with global standards and norms

Please contact us, if besides the refractive index also other measured value verification (e.g. density, optical rotation, pH and conductance etc.) should to be determined in one step.

Typical applications

The DR6000-TF models are the ideal solution for manufacturers of flavors, fragrances and essential oils, as well as for the pharmaceutical and beverage industries.

  • Routine analysis with high sample throughput
  • Quality control of raw materials and auxiliary materials
  • Monitoring of the production of semi-finished products and end products
  • Quality and purity control of raw materials and end products
  • Determination of the sugar concentration in juices and alcohol-free beverages
  • Determination of the alcohol or extract content in beer, spices, wine or spirits

Model specifications



DR6000-TF

DR6100-TF

DR6200-TF

DR6300-TF

MEASUREMENT DATA



SCALES

Refractive index (nD)
Concentration of sucrose, glucose, fructose and invert sugar [%Brix],
User-defined

MEASUREMENT RANGE

nD 1.3200–1.5800
0–95 %Brix

nD 1.3200–1.7000
0–95 %Brix

nD 1.32000–1.58000
0–95 %Brix

nD 1.32000–1.70000
0–95 %Brix

MEASUREMENT ACCURACY

nD ±0.0001
±0.1 %Brix

nD ±0.00002
±0.02 %Brix

RESOLUTION

nD 0.0001
0.1 %Brix

nD 0.00001
0.01 %Brix

MEASUREMENT PERIOD

approx. 4 s

MEASUREMENT PRISM

Sapphire

LIGHT SOURCE

LED

WAVELENGTH

589 nm

TEMPERATURE DATA



TEMPERATURE CONTROL

With integrated Peltier temperature control

TEMP. CONTROL RANGE

10–80 °C

ACCURACY OF TEMP. CONTROL

±0.1 °C

TEMPERATURE COMPENSATION

Can be activated
(ICUMSA or freely definable)

TEMPERATURE MEASUREMENT

With integrated temperature sensor Pt100

TEMPERATURE MEASUREMENT RANGE

10–80 °C

TEMP. MEASUREMENT ACCURACY

±0.1 °C

TEMP. MEASUREMENT RESOLUTION

0.1 °C
