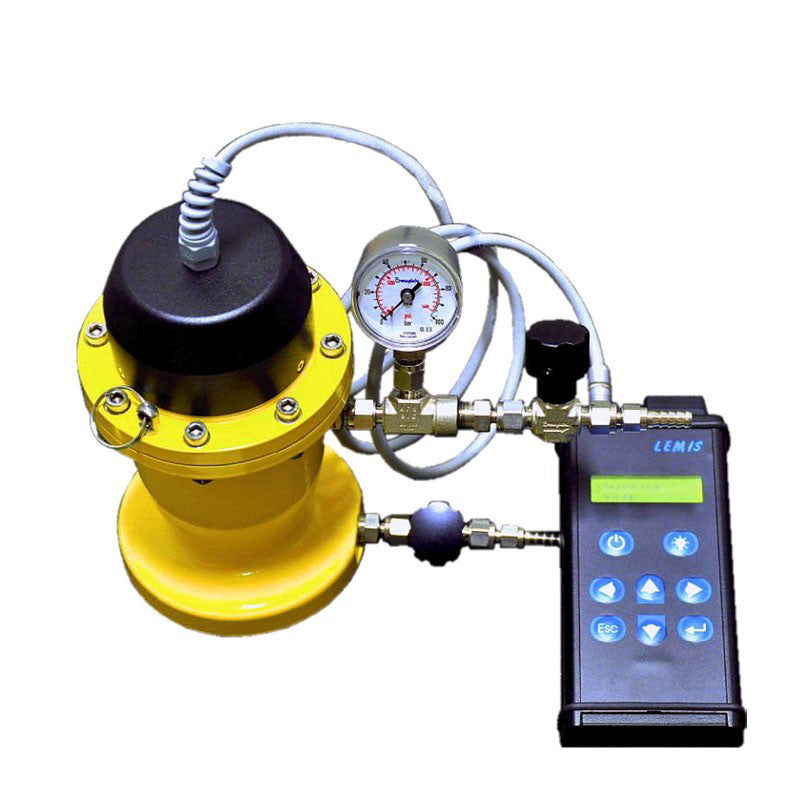

ChemTron DM-250.3 LPG Density Meter
ChemTron DM-250.3 LPG Density Meter
无法加载取货服务可用情况
* Please Contact Us for the Best Quote and to Confirm Delivery Time
DM-250.3 LPG Density Meter
DM-250.3 Liquefied Petroleum Gas Density Meter The principle of the liquefied petroleum gas density meter is the resonance method (vibrating element) measurement, which has high accuracy and stability.
The principle of liquefied petroleum gas density meter is the resonance method (vibrating element) measurement, which has high accuracy and stability.
The design of DM-250.3 greatly reduces the difficulty of sampling and sample preparation, and the relevant data can be easily read through the LCD display, avoiding human errors.
Windows software assists the operator in data analysis. It is mainly used in LPG filling stations, LPG transmission stations, LPG storage stations, and petroleum
industry, product concentration control and distribution outlets, etc.
Product Features
* Accurate measurement of density and temperature, data can be obtained within a few seconds
* Conforms to ASTM D1657 measurement principle and method
* Small amount of sample required
* Convenient and fast operation
* Compact and compact design
* Automatic temperature compensation function
* Data and transmission via Bluetooth communication to computer
Technical Parameters
|
Density range |
0 to 3 g/cm³ (0 to 3000kg/m³) |
|
measurement accuracy |
Up to ±0.0003 g/cm³ (up to ±0.3 kg/m³) |
|
repeatability |
Up to ±0.00015 g/cm³ (up to ±0.15 kg/m³) |
|
display resolution |
0.0001 g/cm³ (0.1 kg/m³) |
|
temperature range |
-40°C to +85°C |
|
temperature accuracy |
±0.1°C |
|
Applicable ambient temperature |
-40°C to +85°C |
|
Maximum pressure |
16bar (1.6MPa) |
|
Sensor material |
SS 316L stainless steel, NiSpan C nickel alloy, C22 Hastelloy optional |
|
power supply |
NiMH 3.6V-1500mAh |
|
Use time after charging |
about 12 hours |
|
intrinsically safe |
Controller: ATEX II (2G) EEx ib[ia] IIB T4 Sensor: ATEX II 1G EEx ia IIB T4 |
|
sample size |
250mL |
|
Dimensions |
245×225×120mm |
|
weight |
about 6kg |
|
show |
OLED display, background lighting |
|
data storage |
According to date and time, up to 1980 sets of data can be stored |
|
communication |
Connect to printer/PC via Bluetooth and USB |
|
software |
Windows PC software optional |
