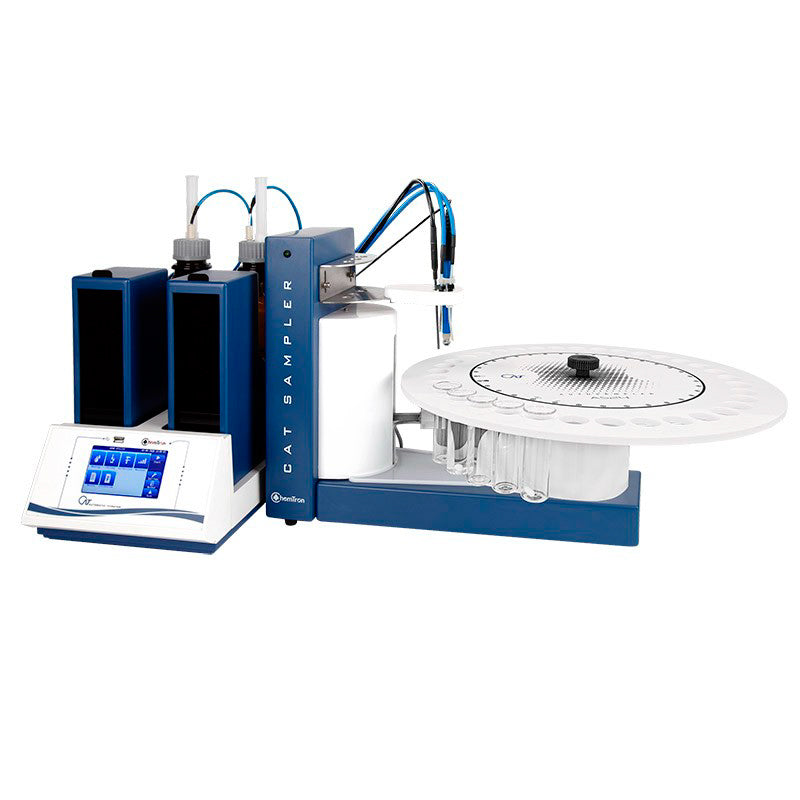

ChemTron CAT2-35 series Titrator
ChemTron CAT2-35 series Titrator
无法加载取货服务可用情况
* Please Contact Us for the Best Quote and to Confirm Delivery Time
Titrator CAT2-35
Dispensation accuracy：＜0.2%，Dispensation repeatability：±0.2%
CAT Automatic Titrator has been designed to simply and precisely perform the widest range of potentiometric titrations. has always been the first choice if you were looking for a very easy-to-use automatic titrator for any application. A special training or a deeper knowledge of automatic titration was not necessary to get precise and quick results. That and much more is exactly what the new generation of CAT stands for.
Features
|
Display |
4.3" monochromatic LCD touch screen |
|
Burette dispensation accuracy |
Syringe volume: 10mL (It is possible to install up to 2 burettes) Burette for titrant dosage resolution at 12,000 steps (means 0.83 μL at any step) |
|
Dispensation accuracy |
<0.2% (2μL with 10ml syringe) |
|
Dispensation repeatability |
± 0.2% (2μL with 10ml syringe) |
|
Peristaltic pump |
Interchangeable pump head (up 3 per unit), 1ml/sec. |
|
pH |
Range:0-14pH, Accuracy:±0.02pH, Resolution:±0.01pH |
|
mV |
Range:±2000mV, Accuracy:±2mV, Resolution:±0.1mV |
|
μA |
Range:±10μA, Accuracy:±2μA, Resolution:±0.1μA |
|
Temperature |
Range:0-100℃ , Accuracy:±1℃ , Resolution:±0.1℃ |
|
Utility procedures |
1.Priming 2.Cleaning 3.Electrode calibration |
|
Method template |
EP, EQ, free SO2, total SO2 and double SO2 |
|
pH calibration |
Buffer auto-recognize. Refusal defective electrodes. Notice expired calibration (to be set from 0 to 7 days). Temperature compensation with pt100 probe during pH calibration 1. 1buffer calibration (7) 2. 2 buffers calibration (7, 4 or 10) 3. Theorical (Nernst equation) 4. Oenological: 2 buffers calibration (7, 3) |
|
Communication |
1. Electrode port (x2) 2. USB A 3. USB B 4. RS232 serial (for external printer) 5. RS232 serial (for sampler) 6. Bluetooth (for external PC |
|
Internal memory |
Last 50 analyses and last 10 calibrations Up 30 methods Data export: (date, hour, operator ID, sample ID, method, result, titrant volume) a) To USB pen drive (file csv) b) To external pc (via dedicated |
|
Accessories |
1. Printer 2. Single analyses stand 3. 16 positions sampler 4. 35 positions micro-sampler 5. Auto-level adjuster 6. Automatic degasser 7. Software for data management on external PC |
Order Information
CAT2 Automatic titrator with 35 position micro-sampler
|
Order No. |
Model |
Description |
|
CAT2-35-M1 |
Basis set |
Basic unit without electrode, Included CAT2, AS24 35 position micro-sampler (1),Stirring paddle(2),10ml burette(2),titration tube(2),power supply(1),1L glass bottle(2), GL45 and S40 adapter(2),drying tube(2). |
|
CAT2-35-M2 |
For pH titration |
CAT2-35-M1 with Micro pH electrode and buffer solution |
|
CAT2-35-M3 |
For Precipitation titration |
CAT2-35-M1 with Micro Ag electrode |
|
CAT2-35-M4 |
For Redox titration |
CAT2-35-M1 with Micro Pt electrode |
|
CAT2-35-M5 |
For Dead stop titration |
CAT2-35-M1 with Micro Double Platinum electrode |
