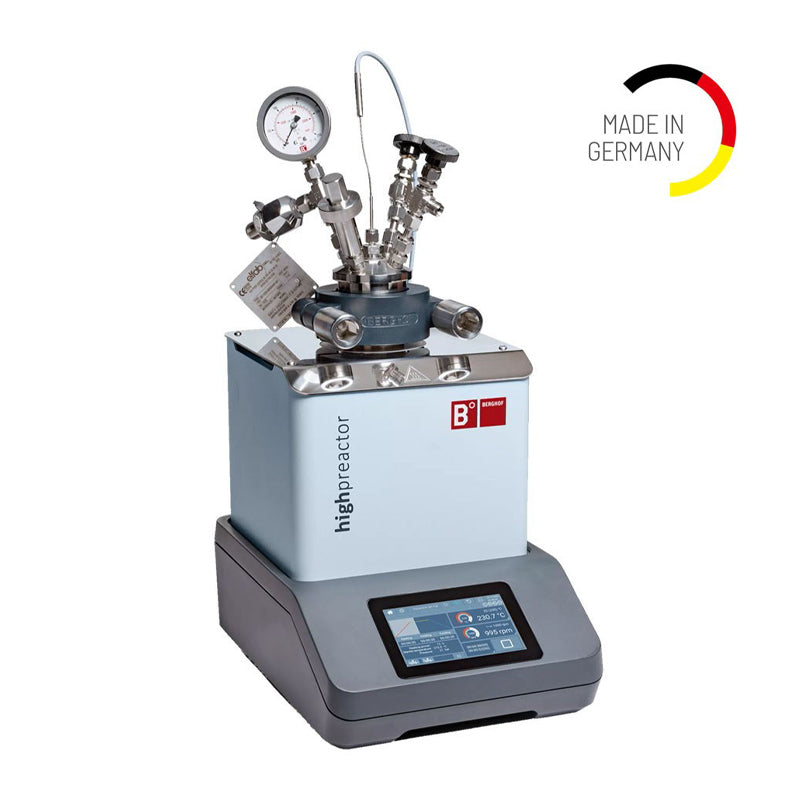

BR-100 High Pressure Reactor

This high-pressure reactor has established itself as a standard solution for day-to-day laboratory work due to its handy size.

Description

This high-pressure reactor has established itself as a standard solution for day-to-day laboratory work due to its handy size. It is available in stainless steel 1.4571 (SUS 316LTI), Hastelloy C-22, or with PTFE lining on all sides. The usable volume of the reactor can be varied between 75 ml and 150 ml using different reactor vessels.
The BR-100 high-pressure reactor is notable for its ease of handling. The reactor is closed using a manual quick closure that can be attached without the use of tools. The reactor seal is established using a conical flange lock and O-ring seal of PTFE, FKM, or FFKM. The appropriate fitting inserts are available in stainless steel 1.4571 (SUS 316LTI) or Hastelloy C-22. A total of 5 connection options are provided in the lid, which can be selected from the following:
* Immersion tube for temperature probe
* Rupture disc of metal for safe limitation of the maximum pressure
* Pressure display
* Vent valve
* One freely configurable fitting, for example for a gas sampling valve or liquid sampling point
Temperature is regulated using a temperature probe which detects the inner temperature of the reactor in an immersion tube. A second temperature probe can optionally be used as an independent overheating safety.

Features
* The flexible small reactor: For routine applications
* 75, 100, 150ml / 200 bar / 300℃ (PTFE-Lined 230℃ )
* Quick closure chain, to be operated manually without tools
* O-seal ring made of Viton®, PTFE or Kalrez®
* Either with PTFE-insert or completely made of SUS 316LTl or Hastelloy®
* Heating and stirring by laboratory hot-plate with integrated magnetic stirrer
* Optionally 2'nd thermocouple
