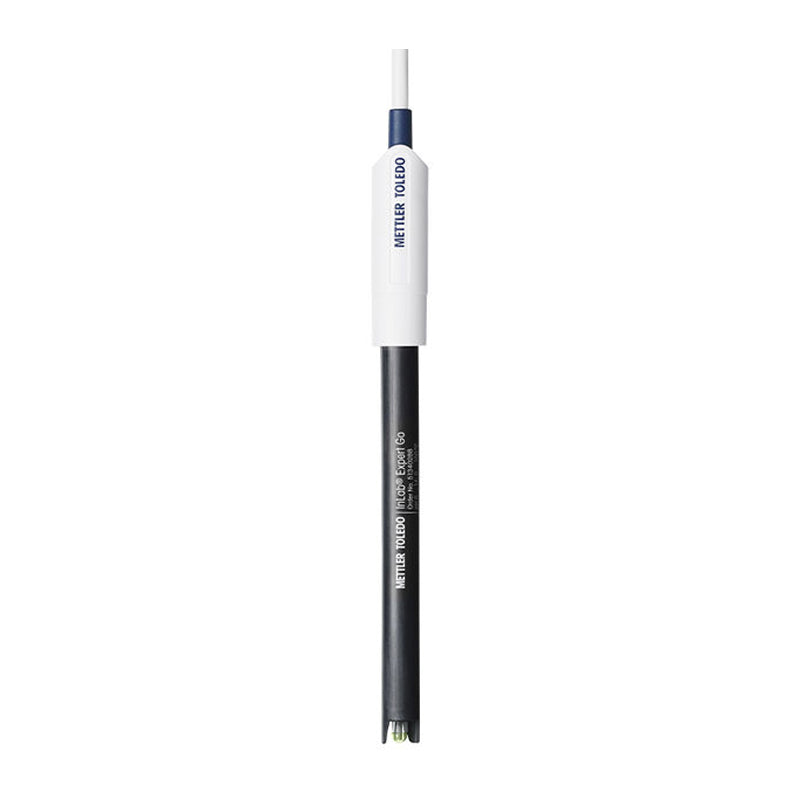

Detailed Description - pH Sensor InLab® Expert Go
|
Measurement range |
pH 0–14 |
|
Temperature range |
0 °C – 100 °C |
|
Interface type |
Open interface |
|
Electrode column material |
PEEK |
|
Sensor type |
Combined electrode |
|
Electrode column length |
120 mm |
|
Electrode column diameter |
12 mm |
|
cable |
1.8 m |
|
parameter |
pH |
|
Reference system |
ARGENTHAL™ (containing Ag+- anion defects) |
|
Reference electrolyte |
XEROLYT® Polymers |
|
Thin film glass |
IN |
|
Thin film resistor (25°C) |
< 250 MΩ |
|
Intelligent Sensor Management (ISM®) |
no |
|
Temperature probe |
NTC 30 kΩ |
|
Low maintenance rate |
yes |
|
Signal type |
analogy |
|
Sensor characteristics |
IP67 mechanically stable temperature probe |
|
Sample volume |
>= 20 mL |
|
Included cable |
yes |
|
Meter connector |
BNC/RCA (Cinch) |
|
Typical sample |
Beer, suspended solids water |
|
Connector on the sensor |
1.8 m fixed cable |
|
Sample composition |
watery |
|
Sample consistency |
Sludge/mud/suspended solids liquid |
|
Sample temperature |
0°-100°C |
|
Minimum sample size (uL) |
20 mL |
